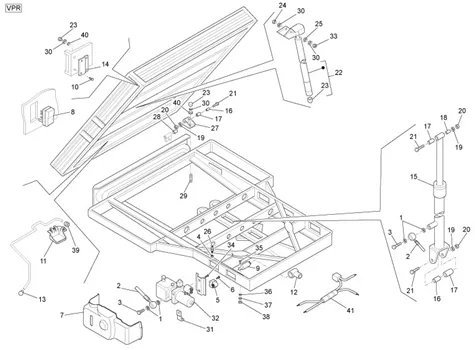

Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015 PIAGGIO VU

Parties plastiques-carrosseries : 02.22 SYSTEME DE BASCULEMENT
Systeme de basculement
Search
WASHER (19X14X1, 5) OEM PIAGGIO THREE-WHEELER COMMON A LA RANGE-218623

1
P2R reference P2R reference 111865
Maker reference Maker reference 218623

WASHER (19X14X1, 5) OEM PIAGGIO THREE-WHEELER COMMON A LA RANGE-218623

More information

Quantity required : 2

CM032101 - TUYAU FLEXIBLE

2
P2R reference P2R reference 121327
Maker reference Maker reference CM032101

CM032101 HOSE FLEXIBLE

More information

Quantity required : 1

565057 - BOULON

3
P2R reference P2R reference 114000
Maker reference Maker reference 565057

565057 BOLT

More information

Quantity required : 4

568636 - ECROU

4
P2R reference P2R reference 67088
Maker reference Maker reference 568636

568636-NUT

More information

Quantity required : 2

231284 - BIP BIP

5
P2R reference P2R reference 65963
Maker reference Maker reference 231284

231284 - BIP BIP

More information

Quantity required : 1

009000 - VIS S00900000

6
P2R reference P2R reference 63862
Maker reference Maker reference 0090005

009000-SCREW S00900000

More information

Quantity required : 2

611602 - COPERT.PROT.PO

7
P2R reference P2R reference 121655
Maker reference Maker reference 611602

611602 COPERT. PROT. PO

More information

Quantity required : 1

FOLDING DECK SWITCH "PIAGGIO GENUINE PART" APE, CARGO -581377-

8
P2R reference P2R reference 118578
Maker reference Maker reference 581377

INTERRUPTEUR/CONTACTEUR DE BENNE OEM PIAGGIO THREE-WHEELER APE 1997 > 20016/CARGO 2004 >-581377

More information

Quantity required : 1

CENTRE CLIGNOTANTE/BRUITEUR DE BENNE OEM PIAGGIO PORTER-615392

9
P2R reference P2R reference 119281
Maker reference Maker reference 615392

CENTRE CLIGNOTANTE/BRUITEUR DE BENNE OEM PIAGGIO PORTER-615392

More information

Quantity required : 1

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

10
P2R reference P2R reference 65644
Maker reference Maker reference 0311165

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

More information

Quantity required : 4

569355 - SILENT BLOC

11
P2R reference P2R reference 114113
Maker reference Maker reference 569355

569355 SILENT BLOC

More information

Quantity required : 1

582305 - CAPUCHON (BOSCH)

12
P2R reference P2R reference 110660
Maker reference Maker reference 582305

582305 CAPUCHON (BOSCH)

More information

Quantity required : 1

0032912 - SILENT BLOC

13
P2R reference P2R reference 111480
Maker reference Maker reference 00329125

0032912 SILENT BLOC

More information

Quantity required : 1

2167185 - ETRIER

14
P2R reference P2R reference 115362
Maker reference Maker reference 2167185

2167185 CALIPER

More information

Quantity required : 2

BUCKET HYDRAULIC ACTUATOR "PIAGGIO GENUINE PART" APE TM703 -567834-

15
P2R reference P2R reference 124076
Maker reference Maker reference 567834

VERIN HYDRAULIQUE DE BENNE OEM PIAGGIO THREE-WHEELER APE TM703-567834

More information

Quantity required : 1

1180224 - ENTRETOISE

16
P2R reference P2R reference 116523
Maker reference Maker reference 1180224

1180224 SPACER

More information

Quantity required : 1

118020 - MANCHON

17
P2R reference P2R reference 117489
Maker reference Maker reference 118020

118020 SLEEVE

More information

Quantity required : 2

1180234 - ENTRETOISE

18
P2R reference P2R reference 117115
Maker reference Maker reference 1180234

1180234 SPACER

More information

Quantity required : 1

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

19
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

20
P2R reference P2R reference 65465
Maker reference Maker reference 0201105

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

More information

Quantity required : 1

SCREW FLANGE TH (10X120) OEM PIAGGIO COMMON A LA RANGE-030113

21
P2R reference P2R reference 65624
Maker reference Maker reference 0301135

SCREW FLANGE TH (10X120) OEM PIAGGIO COMMON A LA RANGE-030113

More information

Quantity required : 1

568768 - PUNTONE DI SIC

22
P2R reference P2R reference 116018
Maker reference Maker reference 568768

568768 PUNTONE DI SIC

More information

Quantity required : 1

568760 - CAPUCHON (BOSCH)

23
P2R reference P2R reference 110258
Maker reference Maker reference 568760

568760 - CAPUCHON (BOSCH)

More information

Quantity required : 1

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

24
P2R reference P2R reference
Maker reference Maker reference 00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038

25
P2R reference P2R reference 63773
Maker reference Maker reference 0030385

WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038

More information

Quantity required : 3

CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289

26
P2R reference P2R reference 115889
Maker reference Maker reference B023289

CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289

More information

Quantity required : 1

2165855 - SUPPORT

27
P2R reference P2R reference 120110
Maker reference Maker reference 2165855

2165855 BRACKET

More information

Quantity required : 2

142116 - ENTRETOISE

28
P2R reference P2R reference 112761
Maker reference Maker reference 142116

142116 SPACER

More information

Quantity required : 5

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

29
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 6

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

30
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 6

611616 - SUPPORT

31
P2R reference P2R reference 114049
Maker reference Maker reference 611616

611616 BRACKET

More information

Quantity required : 1

PUMP DE BASCULEMENT/ENGINE DE BENNE OEM PIAGGIO PORTER PICK-UP-56580R

32
P2R reference P2R reference 123540
Maker reference Maker reference 56580R

PUMP DE BASCULEMENT/ENGINE DE BENNE OEM PIAGGIO PORTER PICK-UP-56580R

More information

Quantity required : 1

NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842

33
P2R reference P2R reference 114035
Maker reference Maker reference 658842

NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842

More information

Quantity required : 6

BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153

34
P2R reference P2R reference 65650
Maker reference Maker reference 0311535

BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153

More information

Quantity required : 3

031084 - BOULON

35
P2R reference P2R reference 65636
Maker reference Maker reference 0310845

031084-BOLT

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

36
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

37
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

38
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

BUFFER DE BRAKE SHOE SET REAR OEM PIAGGIO THREE-WHEELER APE 50 1998 >, TM703 FUEL 2000 > 2016-057939

39
P2R reference P2R reference 65655
Maker reference Maker reference 0579395

BUFFER DE BRAKE SHOE SET REAR OEM PIAGGIO THREE-WHEELER APE 50 1998 >, TM703 FUEL 2000 > 2016-057939

More information

Quantity required : 1

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

40
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 6

582296 - GR FAISCEAU

41
P2R reference P2R reference 119531
Maker reference Maker reference 582296

582296 GR HARNESS

More information

Quantity required : 1
