Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

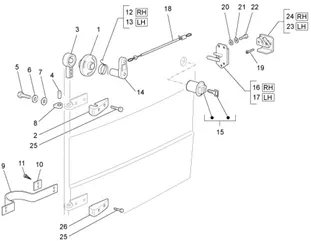

Parties plastiques-carrosseries : 02.07 COMPOSANTS DES PORTES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_02.07_20251008101415.PNG)
1 |
212708 BRACKET More informationQuantity required : 2 |
||||||
|
2 |
569578 - COPRICERNIERA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/6/1/img/113461.jpg)
3 |
GRIP/LEVER DE DOOR OEM PIAGGIO THREE-WHEELER APE TM703 1997 >-261449 More informationQuantity required : 2 |
||||||
|
4 |
017720 GOUPILLE More informationQuantity required : 4 |
||||||
|
5 |
030079-BOLT S03007900 More informationQuantity required : 4 |
||||||
|
6 |
414946-WASHER PLATE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
7 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 4 |
||||||
|
8 |
212728 BLOC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/8/4/img/111484.jpg)
9 |
SANGLE DE DOOR (L174) OEM PIAGGIO THREE-WHEELER APE POKER, TM 703-212569 More informationQuantity required : 2 |
||||||
|
10 |
567605 PLATE More informationQuantity required : 4 |
||||||
|
11 |
015952-SCREW More informationQuantity required : 8 |
||||||
|
12 |
212711 SPRING D More informationQuantity required : 1 |
||||||
|
13 |
212713 SPRING G More informationQuantity required : 1 |
||||||
|
14 |
212709 LEVER G-D More informationQuantity required : 2 |
||||||
|
15 |
613726 COUPLE POUSSOIRS More informationQuantity required : 1 |
||||||
|
16 |
232419 LOCK RIGHT More informationQuantity required : 1 |
||||||
|
17 |
232420 LOCK LEFT More informationQuantity required : 1 |
||||||
|
18 |
B007714 - TIRANT OUVRE PORTE More informationQuantity required : 2 |
||||||
|
19 |
008936 SCREW S00893600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
20 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
21 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 6 |
||||||
|
22 |
018509-SCREW More informationQuantity required : 6 |
||||||
|
23 |
213181 GACHE LEFT More informationQuantity required : 1 |
||||||
|
24 |
213182 GACHE RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
25 |
SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536 More informationQuantity required : 4 |
||||||
|
26 |
569577 COPRICERNIERA More informationQuantity required : 2 |
