Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015 PIAGGIO VU

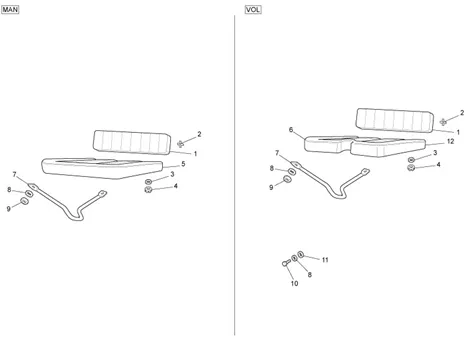

Parties plastiques-carrosseries : 02.40 SIEGES AVANT
Sieges avant
Search
565639 - DOSSIER SIEGE

1
P2R reference P2R reference 120490
Maker reference Maker reference 565639

565639 DOSSIER SIEGE

More information

Quantity required : 1

ARRETOIR DE SIEGE FRONT OEM PIAGGIO THREE-WHEELER APE-194721

2
P2R reference P2R reference 111240
Maker reference Maker reference 194721

ARRETOIR DE SIEGE FRONT OEM PIAGGIO THREE-WHEELER APE-194721

More information

Quantity required : 3

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

3
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

More information

Quantity required : 2

NUT A OREILLE/THROTTLE BODY (M8) OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-241279

4
P2R reference P2R reference 111725
Maker reference Maker reference 241279

NUT A OREILLE/THROTTLE BODY (M8) OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-241279

More information

Quantity required : 2

614081 - SIEGE

5
P2R reference P2R reference 122276
Maker reference Maker reference 614081

614081 SIEGE

More information

Quantity required : 1

ASSISE DE SIEGE OEM PIAGGIO THREE-WHEELER APE TM 703 1997 > (WITH VOLANT)-568367

6
P2R reference P2R reference 122639
Maker reference Maker reference 568367

ASSISE DE SIEGE OEM PIAGGIO THREE-WHEELER APE TM 703 1997 > (WITH VOLANT)-568367

More information

Quantity required : 1

21229209 - TUYAU

7
P2R reference P2R reference 119899
Maker reference Maker reference 21229209

21229209 HOSE

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

8
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 5

NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842

9
P2R reference P2R reference 114035
Maker reference Maker reference 658842

NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842

More information

Quantity required : 2

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

10
P2R reference P2R reference 65644
Maker reference Maker reference 0311165

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

More information

Quantity required : 2

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

11
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2
