Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

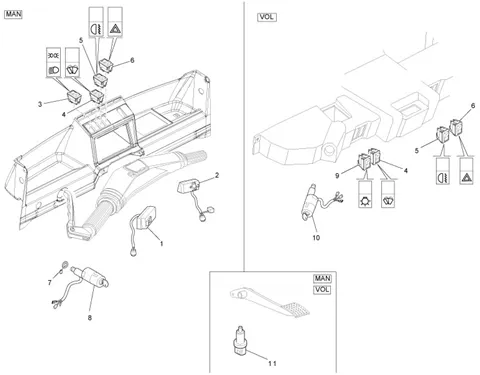

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_06.01_20251008101759.PNG)
1 |
581370 R. A. W. INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
2 |
581369 INTERRUPTEUR LUMIERE More informationQuantity required : 1 |
||||||
|
3 |
581373 SWITCH More informationQuantity required : 1 |
||||||
|
4 |
613606 INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
5 |
581375 SWITCH FWU BROUILLARD More informationQuantity required : 1 |
||||||
|
6 |
581376 INTERRUPTEUR LAMP ALARME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
7 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
||||||
|
8 |
568194 - COMMUTATEUR More informationQuantity required : 1 |
||||||
|
9 |
581372 INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
10 |
216159 - COMMUTAT.CON B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/8/9/img/115889.jpg)
11 |
CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289 More informationQuantity required : 1 |
