Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

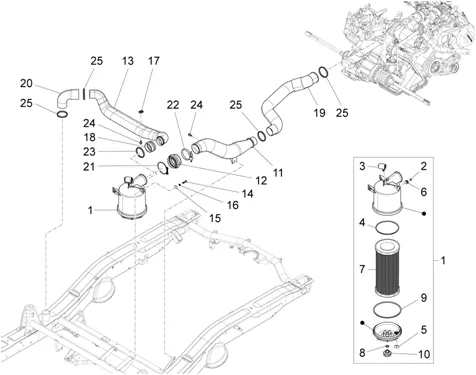

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_01.45.PNG)
1 |
615076 FILTER More informationQuantity required : 1 |
||||||
|
2 |
079375 BUSH More informationQuantity required : 3 |
||||||
|
3 |
583956 - CAPTEUR THERMO More informationQuantity required : 1 |
||||||
|
4 |
615076 FILTER More informationQuantity required : 1 |
||||||
|
5 |
632426 VALVE More informationQuantity required : 1 |
||||||
|
6 |
230560 SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/0/8/img/115808.jpg)
7 |
AIR FILTER OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 > 2013, TM 703 DIESEL 2005 > 2012/CARGO 2004 >-614945 More informationQuantity required : 1 |
||||||
|
8 |
568997 GASKET More informationQuantity required : 1 |
||||||
|
9 |
569696 GASKET More informationQuantity required : 1 |
||||||
|
10 |
569041 POMELLO More informationQuantity required : 1 |
||||||
|
11 |
615650 TUBE More informationQuantity required : 1 |
||||||
|
12 |
613161 FITTING More informationQuantity required : 1 |
||||||
|
13 |
613715 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
14 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
15 |
WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
16 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
18 |
614125 ACCOUPLEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/5/8/4/img/119584.jpg)
19 |
SLEEVE EPURATEUR MANIFOLD OEM PIAGGIO CARGO 2004 >-263915 More informationQuantity required : 1 |
||||||
|
20 |
263969 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/7/1/img/112271.jpg)
21 |
CLAMP DE AIR FILTER OEM PIAGGIO CARGO 2004 > 2017-615406 More informationQuantity required : 1 |
||||||
|
22 |
293404-CLAMP More informationQuantity required : 1 |
||||||
|
23 |
COLLIER |
||||||
|
24 |
BOULON |
||||||
|
25 |
D9004460123 CLAMP More informationQuantity required : 4 |
