Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015 PIAGGIO VU

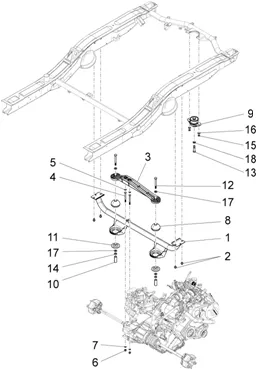

Châssis - parties plastiques - carrosseries : 02.05 SUPPORTS MOTEUR
Supports moteur
Search
TRAVERSE DE BRACKET ENGINE OEM PIAGGIO CARGO 2004 >-615654

1
P2R reference P2R reference 121558
Maker reference Maker reference 615654

TRAVERSE DE BRACKET ENGINE OEM PIAGGIO CARGO 2004 >-615654

More information

Quantity required : 1

SCREW FLANGE DE RIDELLE OEM PIAGGIO PORTER 2020 <-D9166160820

2
P2R reference P2R reference 110387
Maker reference Maker reference D9166160820

SCREW FLANGE DE RIDELLE OEM PIAGGIO PORTER 2020 <-D9166160820

More information

Quantity required : 4

613706 - TRAVERSE

3
P2R reference P2R reference 118046
Maker reference Maker reference 613706

613706 TRAVERSE

More information

Quantity required : 1

SCREW TH (8X90) OEM PIAGGIO COMMON A LA RANGE-030084

4
P2R reference P2R reference 65619
Maker reference Maker reference 0300845

SCREW TH (8X90) OEM PIAGGIO COMMON A LA RANGE-030084

More information

Quantity required : 2

ARRET

5
P2R reference P2R reference
Maker reference Maker reference 615514

ARRET

002418 - ECROU

6
P2R reference P2R reference 109905
Maker reference Maker reference 0024185

002418 NUT

More information

Quantity required : 2

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

7
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2

RUBBER MOUNT/BRACKET ENGINE OEM PIAGGIO THREE-WHEELER APE CLASSIC, CALESSINO, TM 703 DIESEL-265091

8
P2R reference P2R reference 115177
Maker reference Maker reference 265091

RUBBER MOUNT/BRACKET ENGINE OEM PIAGGIO THREE-WHEELER APE CLASSIC, CALESSINO, TM 703 DIESEL-265091

More information

Quantity required : 2

644507 - SILENTBLOC

9
P2R reference P2R reference 118759
Maker reference Maker reference 644507

644507 RUBBER MOUNT

More information

Quantity required : 1

SPACER T1 OEM PIAGGIO THREE-WHEELER APE-219299

10
P2R reference P2R reference 114961
Maker reference Maker reference 219299

SPACER T1 OEM PIAGGIO THREE-WHEELER APE-219299

More information

Quantity required : 2

SPACER CARROSSERIE OEM PIAGGIO THREE-WHEELER APE-218758

11
P2R reference P2R reference 111992
Maker reference Maker reference 218758

SPACER CARROSSERIE OEM PIAGGIO THREE-WHEELER APE-218758

More information

Quantity required : 2

015582 - VIS S01558200

12
P2R reference P2R reference 111568
Maker reference Maker reference 0155825

015582 SCREW S01558200

More information

Quantity required : 2

BOLT DE OEM MOPED SWINGARM OEM PIAGGIO PORTER-D9004101583

13
P2R reference P2R reference 112667
Maker reference Maker reference D9004101583

BOLT DE OEM MOPED SWINGARM OEM PIAGGIO PORTER-D9004101583

More information

Quantity required : 1

NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370

14
P2R reference P2R reference 65965
Maker reference Maker reference 231370

NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370

More information

Quantity required : 2

272176 - ECROU

15
P2R reference P2R reference 66111
Maker reference Maker reference 272176

NUT M8 OEM PIAGGIO COMMON A LA RANGE-272176

More information

Quantity required : 2

WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383

16
P2R reference P2R reference 63764
Maker reference Maker reference 0023835

WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383

More information

Quantity required : 2

17
P2R reference P2R reference
Maker reference Maker reference 30405

WASHER GROWER D12 OEM PIAGGIO COMMON A LA RANGE-D9451101200

18
P2R reference P2R reference 110228
Maker reference Maker reference D9451101200

WASHER GROWER D12 OEM PIAGGIO COMMON A LA RANGE-D9451101200

More information

Quantity required : 1
