Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

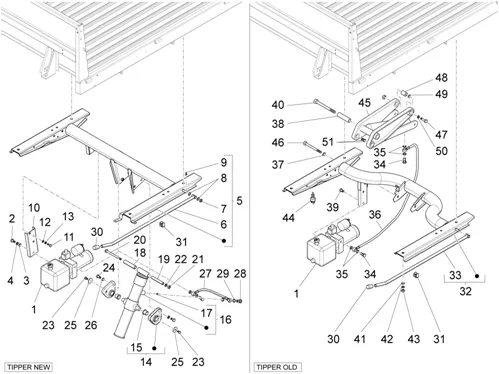

Châssis - parties plastiques - carrosseries : 02.22 SYSTÈME DE BASCULEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_02.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/5/4/0/img/123540.jpg)
1 |
PUMP DE BASCULEMENT/ENGINE DE BENNE OEM PIAGGIO PORTER PICK-UP-56580R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
2 |
BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
3 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
4 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
5 |
6482195 - SUPPORT More informationQuantity required : 1 |
||||||
|
5 |
B007142 FRAME SUB-ASSEMBLY More informationQuantity required : 1 |
||||||
|
6 |
648220 ROD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
7 |
WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/6/img/65706.jpg)
8 |
WASHER SPRING (12. 8X20) OEM PIAGGIO COMMON A LA RANGE-118745 More informationQuantity required : 2 |
||||||
|
9 |
B005668 GOUPILLE More informationQuantity required : 1 |
||||||
|
10 |
661184 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
11 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
12 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
13 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/1/9/img/116319.jpg)
14 |
PLATE MOUNTING VERRIN OEM PIAGGIO PORTER, CARGO 2008 > 2020-648201 More informationQuantity required : 2 |
||||||
|
15 |
648205 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/5/img/151215.jpg)
16 |
VERIN HYDRAULIQUE DE BENNE OEM PIAGGIO PORTER 2010 > 2020-1E002886 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/1/8/9/img/121189.jpg)
17 |
VALVE DE SECURITE VERIN OEM PIAGGIO PORTER TIPPER 2020 <-1E002885 More informationQuantity required : 1 |
||||||
|
18 |
118020 SLEEVE More informationQuantity required : 1 |
||||||
|
19 |
1180234 SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/4/img/65624.jpg)
20 |
SCREW FLANGE TH (10X120) OEM PIAGGIO COMMON A LA RANGE-030113 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
21 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110 More informationQuantity required : 1 |
||||||
|
22 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 1 |
||||||
|
23 |
598920-BOLT More informationQuantity required : 2 |
||||||
|
24 |
BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153 More informationQuantity required : 4 |
||||||
|
25 |
118563-WASHER More informationQuantity required : 2 |
||||||
|
26 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 4 |
||||||
|
27 |
648225 TUBE More informationQuantity required : 1 |
||||||
|
28 |
565057 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/6/5/img/111865.jpg)
29 |
WASHER (19X14X1, 5) OEM PIAGGIO THREE-WHEELER COMMON A LA RANGE-218623 More informationQuantity required : 4 |
||||||
|
30 |
264887 - BOUCHON More informationQuantity required : 1 |
||||||
|
31 |
264268 - COLLIER More informationQuantity required : 1 |
||||||
|
32 |
614784 - SUPPORT More informationQuantity required : 1 |
||||||
|
33 |
263674 ASTA * More informationQuantity required : 1 |
||||||
|
34 |
565057 BOLT More informationQuantity required : 2 |
||||||
|
35 |
WASHER (19X14X1, 5) OEM PIAGGIO THREE-WHEELER COMMON A LA RANGE-218623 More informationQuantity required : 4 |
||||||
|
36 |
264267 - TUBE More informationQuantity required : 1 |
||||||
|
37 |
264190 - RONDELLE More informationQuantity required : 2 |
||||||
|
38 |
ENTRETOISE |
||||||
|
39 |
VIS |
||||||
|
40 |
566056 PERNO More informationQuantity required : 1 |
||||||
|
41 |
003055-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
42 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
43 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/8/9/img/115889.jpg)
44 |
CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289 More informationQuantity required : 1 |
||||||
|
45 |
5672605 PANTOGRAPHE More informationQuantity required : 1 |
||||||
|
46 |
264395 - VIS More informationQuantity required : 1 |
||||||
|
47 |
264394 - VIS More informationQuantity required : 2 |
||||||
|
48 |
BAGUE |
||||||
|
49 |
264735 - MOYEU More informationQuantity required : 1 |
||||||
|
50 |
264193 - RONDELLE More informationQuantity required : 4 |
||||||
|
51 |
ECROU |
