Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

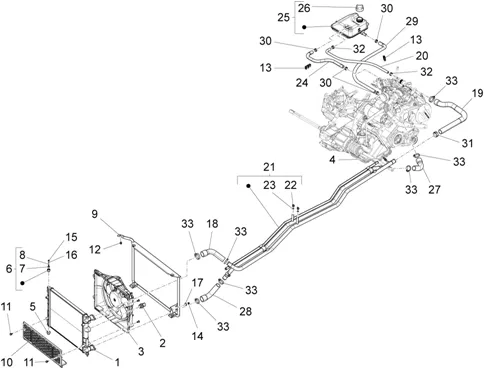

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_02.55.PNG)
1 |
644505 RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/5/3/0/img/119530.jpg)
2 |
CONTACTEUR RADIATOR OEM PIAGGIO CARGO 2004 >-644303 More informationQuantity required : 1 |
||||||
|
3 |
644304 - VENTILATEUR RADIATEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/0/img/68590.jpg)
4 |
SONDE TEMPERATURE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-82622R More informationQuantity required : 1 |
||||||
|
5 |
614860 BUFFER More informationQuantity required : 2 |
||||||
|
6 |
614861 BUFFER More informationQuantity required : 2 |
||||||
|
7 |
Vis |
||||||
|
8 |
224664-WASHER More informationQuantity required : 1 |
||||||
|
9 |
644420 BRACKET More informationQuantity required : 1 |
||||||
|
10 |
644435 PROTEZIONE RADIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/4/img/109864.jpg)
11 |
SCREW TH 6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140614000 More informationQuantity required : 2 |
||||||
|
12 |
D9165260616 - BOULON More informationQuantity required : 1 |
||||||
|
12 |
D9165260616 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/0/0/img/95200.jpg)
13 |
PINCE DE RETENUE TUYAUX OEM PIAGGIO 125-250-300-350-400-500 MP3 2021 <-CM017808 More informationQuantity required : 2 |
||||||
|
14 |
1A010205-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
15 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-012112 More informationQuantity required : 2 |
||||||
|
16 |
224664-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/6/img/66296.jpg)
17 |
WASHER PLATE (6X20) OEM PIAGGIO COMMUNU A LA RANGE-297029 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/2/7/img/115227.jpg)
18 |
HOSE RADIATOR OEM PIAGGIO CARGO 2007 > 2017-613712 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/6/1/9/img/116619.jpg)
19 |
HOSE/HOSE DE RADIATOR OEM PIAGGIO CARGO-614848 More informationQuantity required : 1 |
||||||
|
20 |
1E001437 HOSE REFOULEMENT More informationQuantity required : 1 |
||||||
|
21 |
B000643 TUBE RADIATOR More informationQuantity required : 1 |
||||||
|
21 |
B007697 HOSE REFOULEMENT More informationQuantity required : 1 |
||||||
|
22 |
644452 CAP More informationQuantity required : 1 |
||||||
|
23 |
006707 ANNEAU 7 X 1. 8 S00670700 More informationQuantity required : 1 |
||||||
|
24 |
658325 HOSE RADIAT More informationQuantity required : 1 |
||||||
|
25 |
615655 - VASE EXPEN More informationQuantity required : 1 |
||||||
|
26 |
615656 CAP More informationQuantity required : 1 |
||||||
|
27 |
613818 TUBE More informationQuantity required : 1 |
||||||
|
28 |
613819 TUBE More informationQuantity required : 1 |
||||||
|
29 |
1E001438 HOSE RETOUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
30 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/3/img/72883.jpg)
31 |
CLAMP HOSE COOLING OEM PIAGGIO COMMON A LA RANGE-CM001924 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
32 |
CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/8/img/68498.jpg)
33 |
HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677 More informationQuantity required : 7 |
