Installation électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE

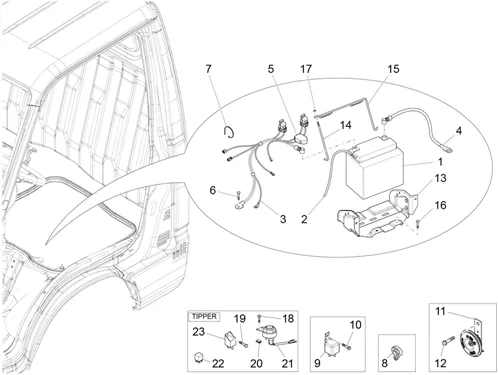

Relais - Batterie - Avertisseur sonore
Search
BATTERY 12V 55AH OEM PIAGGIO PORTER 2009 > 2020-600699M

1
P2R reference P2R reference 123181
Maker reference Maker reference 600699M

BATTERY 12V 55AH OEM PIAGGIO PORTER 2009 > 2020-600699M

More information

Quantity required : 1

645581 - TUYAU CARBU

2
P2R reference P2R reference 111666
Maker reference Maker reference 645581

645581 HOSE CARBU

More information

Quantity required : 1

645640 - CABLE

3
P2R reference P2R reference 121441
Maker reference Maker reference 645640

645640 CABLE

More information

Quantity required : 1

645641 - CABLE

3
P2R reference P2R reference 121108
Maker reference Maker reference 645641

645641 CABLE

More information

Quantity required : 1

4
P2R reference P2R reference
Maker reference Maker reference 8212387Z020005

580188 - COUVERTURE

5
P2R reference P2R reference 112551
Maker reference Maker reference 580188

580188 - COUVERTURE

More information

Quantity required : 1

9004119556000 - BOULON

6
P2R reference P2R reference 109993
Maker reference Maker reference 9004119556000

9004119556000 BOLT

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

7
P2R reference P2R reference 66017
Maker reference Maker reference 257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 1

Collier

8
P2R reference P2R reference
Maker reference Maker reference 9004464482000

Collier

RELAIS DE INDICATOR OEM PIAGGIO 125-250-500 X9, 125-250-400 X-EVO, 125 BEVERLY, HEXAGON, 50 FLY 4T/GILERA GP 800/APRILIA 850 SRV/PIAGGIO PORTER, CARGO-292332

9
P2R reference P2R reference 66251
Maker reference Maker reference 292332

RELAIS DE INDICATOR OEM PIAGGIO 125-250-500 X9, 125-250-400 X-EVO, 125 BEVERLY, HEXAGON, 50 FLY 4T/GILERA GP 800/APRILIA 850 SRV/PIAGGIO PORTER, CARGO-292332

More information

Quantity required : 1

10
P2R reference P2R reference
Maker reference Maker reference 91612610200005

AVERTISSEUR OEM PIAGGIO PORTER, CARGO-660522

11
P2R reference P2R reference 115242
Maker reference Maker reference 660522

AVERTISSEUR OEM PIAGGIO PORTER, CARGO-660522

More information

Quantity required : 1

BOULON

12
P2R reference P2R reference
Maker reference Maker reference 9161140814000

BOULON

614469 - PORTE BATT.

13
P2R reference P2R reference 118877
Maker reference Maker reference 614469

614469 DOOR BATT.

More information

Quantity required : 1

614474 - TIRANT

14
P2R reference P2R reference 111526
Maker reference Maker reference 614474

614474 TIRANT

More information

Quantity required : 1

651948 - CHIUSURA BATTERIA

15
P2R reference P2R reference 114243
Maker reference Maker reference 651948

651948 CHIUSURA BATTERIA

More information

Quantity required : 1

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

16
P2R reference P2R reference 151198
Maker reference Maker reference CM287314

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

More information

Quantity required : 6

261317 - ECROU

17
P2R reference P2R reference 110030
Maker reference Maker reference 261317

261317 NUT

More information

Quantity required : 1

008246 - VIS

18
P2R reference P2R reference 110683
Maker reference Maker reference 0082465

008246 SCREW

More information

Quantity required : 2

009000 - VIS S00900000

19
P2R reference P2R reference 63862
Maker reference Maker reference 0090005

009000-SCREW S00900000

More information

Quantity required : 2

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

20
P2R reference P2R reference 72924
Maker reference Maker reference CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

More information

Quantity required : 2

BEEP-BEEP CLIGNOTEUR

21
P2R reference P2R reference
Maker reference Maker reference 56571R

BEEP-BEEP CLIGNOTEUR

B004817 - BEEP-BEEP CLIGNOTEUR

21
P2R reference P2R reference 120533
Maker reference Maker reference B004817

B004817 - BEEP-BEEP CLIGNOTEUR

More information

Quantity required : 1

CENTRE CLIGNOTANTE/BRUITEUR DE BENNE OEM PIAGGIO PORTER-615392

22
P2R reference P2R reference 119281
Maker reference Maker reference 615392

CENTRE CLIGNOTANTE/BRUITEUR DE BENNE OEM PIAGGIO PORTER-615392

More information

Quantity required : 1

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

23
P2R reference P2R reference 67203
Maker reference Maker reference 58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

More information

Quantity required : 1
