Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

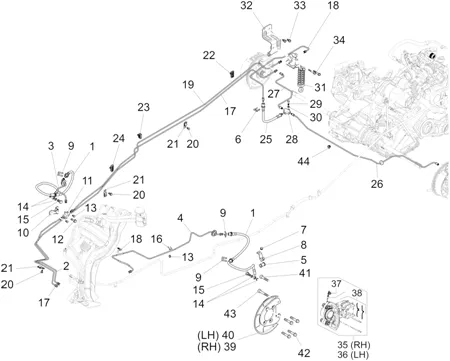

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_05.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/3/img/116403.jpg)
1 |
HOSE/FLEXIBLE/HOSE OF BRAKE FRONT OEM PIAGGIO PORTER 1998 > 2020-B007247 More informationQuantity required : 2 |
||||||
2 |
4731287Z02000 TUBE More informationQuantity required : 1 |
||||||
|
3 |
4731387Z02000 - TUBE More informationQuantity required : 1 |
||||||
|
4 |
4731487Z10000 HOSE More informationQuantity required : 1 |
||||||
|
5 |
TAMPON |
||||||
|
6 |
136916-PLATE More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
D9004461432 CLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/7/2/img/111972.jpg)
9 |
CLAMP/AGRAFE FLEXIBLE OF BRAKE OEM PIAGGIO PORTER-261332 More informationQuantity required : 4 |
||||||
|
9 |
B005354 CLAMP More informationQuantity required : 4 |
||||||
|
10 |
4735587Z02000 BRACKET More informationQuantity required : 1 |
||||||
|
11 |
645626 FITTING More informationQuantity required : 1 |
||||||
|
12 |
BOULON |
||||||
|
13 |
9161160612000 BOLT More informationQuantity required : 4 |
||||||
|
14 |
9004430236000 GASKET More informationQuantity required : 4 |
||||||
|
15 |
264454 - RACCORD More informationQuantity required : 2 |
||||||
|
16 |
D9622130705 CLAMP More informationQuantity required : 2 |
||||||
|
17 |
613661 TUBE More informationQuantity required : 1 |
||||||
|
18 |
613662 TUBE More informationQuantity required : 1 |
||||||
|
19 |
613663 TUBE More informationQuantity required : 1 |
||||||
|
20 |
9161160612000 BOLT More informationQuantity required : 4 |
||||||
|
21 |
Collier |
||||||
|
22 |
D9004464157 CLAMP More informationQuantity required : 1 |
||||||
|
23 |
B005041 CLAMP More informationQuantity required : 2 |
||||||
|
24 |
B005353 BRACKET More informationQuantity required : 1 |
||||||
|
24 |
D9622130705 CLAMP More informationQuantity required : 2 |
||||||
|
25 |
174524 TUBE More informationQuantity required : 1 |
||||||
|
26 |
613658 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/9/img/116459.jpg)
27 |
TUBE OF BRAKE REAR RIGHT OEM PIAGGIO CARGO 613659 More informationQuantity required : 1 |
||||||
|
28 |
136371 FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
29 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
30 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/3/8/5/img/122385.jpg)
31 |
REPARTITEUR OF BRAKE WITH SPRING OEM PIAGGIO PORTER, CARGO 2020 <-4790087Z01000 More informationQuantity required : 1 |
||||||
|
32 |
|
||||||
|
33 |
9161160816000 - BOULON More informationQuantity required : 2 |
||||||
|
34 |
BOULON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/3/6/8/img/122368.jpg)
35 |
CALIPER BRAKE FRONT RIGHT OEM PIAGGIO PORTER 2020 <-658278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/1/6/img/121716.jpg)
36 |
BRAKE CALIPER FRONT LEFT OEM PIAGGIO PORTER 2020 <-658279 More informationQuantity required : 1 |
||||||
|
37 |
4754887501000 CAP More informationQuantity required : 1 |
||||||
|
37 |
837144 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/9/4/img/121094.jpg)
38 |
SET PLAQUETTES FRONT (4 PLAQUETTES) OEM PIAGGIO PORTER FUEL-DIESEL 2020 <-0449187503000 More informationQuantity required : 1 |
||||||
|
39 |
4770387Z01000 FLASQUE AVG More informationQuantity required : 1 |
||||||
|
40 |
4770487Z01000 DISC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/4/4/img/111944.jpg)
41 |
SCREW TH (9X55) MOUNTING BRAKE CALIPER OEM PIAGGIO PORTER 2020 < 9004101534000 More informationQuantity required : 2 |
||||||
|
42 |
1E002521 SCREW More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/7/img/111627.jpg)
43 |
SCREW FLANGE TH (10X71) OEM PIAGGIO COMMON A LA RANGE-264450 More informationQuantity required : 2 |
||||||
|
44 |
179013-SPRING More informationQuantity required : 5 |
