Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015 PIAGGIO VU

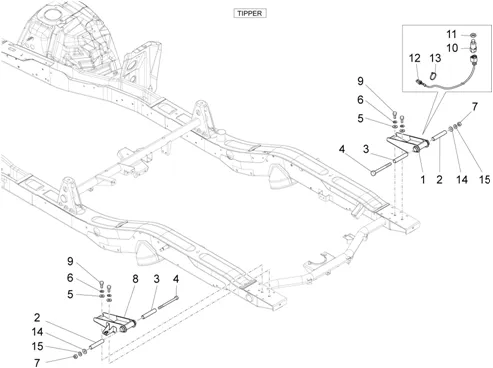

Châssis - parties plastiques - carrosseries : 02.19 COMPOSANTS DE LA BENNE
Composants de la benne
Search
615252 - CHARNIERE

1
P2R reference P2R reference 117884
Maker reference Maker reference 615252

615252 CHARNIERE

More information

Quantity required : 1

B004885 - CHARNIERE

1
P2R reference P2R reference 119193
Maker reference Maker reference B004885

B004885 CHARNIERE

More information

Quantity required : 1

1180224 - ENTRETOISE

2
P2R reference P2R reference 116523
Maker reference Maker reference 1180224

1180224 SPACER

More information

Quantity required : 2

118020 - MANCHON

3
P2R reference P2R reference 117489
Maker reference Maker reference 118020

118020 SLEEVE

More information

Quantity required : 2

SCREW FLANGE TH (10X120) OEM PIAGGIO COMMON A LA RANGE-030113

4
P2R reference P2R reference 65624
Maker reference Maker reference 0301135

SCREW FLANGE TH (10X120) OEM PIAGGIO COMMON A LA RANGE-030113

More information

Quantity required : 2

WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404

5
P2R reference P2R reference 110062
Maker reference Maker reference 00304045

WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404

More information

Quantity required : 4

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

6
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 4

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

7
P2R reference P2R reference 65465
Maker reference Maker reference 0201105

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

More information

Quantity required : 2

615251 - CHARNIERE

8
P2R reference P2R reference 117925
Maker reference Maker reference 615251

615251 CHARNIERE

More information

Quantity required : 1

B004886 - CHARNIERE

8
P2R reference P2R reference 118358
Maker reference Maker reference B004886

B004886 CHARNIERE

More information

Quantity required : 1

264886 - BOULON

9
P2R reference P2R reference 111172
Maker reference Maker reference 264886

264886 - BOULON

More information

Quantity required : 4

CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289

10
P2R reference P2R reference 115889
Maker reference Maker reference B023289

CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289

More information

Quantity required : 1

B023288 - CONTACT DE STOP

10
P2R reference P2R reference 115294
Maker reference Maker reference B023288

B023288 CONTACT DE STOP

More information

Quantity required : 1

NUT CONTACTEUR STOP OEM PIAGGIO THREE-WHEELER APE TM 703, PORTER, CARGO 2020 <-196750

11
P2R reference P2R reference 65824
Maker reference Maker reference 196750

NUT CONTACTEUR STOP OEM PIAGGIO THREE-WHEELER APE TM 703, PORTER, CARGO 2020 <-196750

More information

Quantity required : 1

B005906 - CABLE

12
P2R reference P2R reference 114846
Maker reference Maker reference B005906

B005906 CABLE

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

13
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 4

WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404

14
P2R reference P2R reference 110062
Maker reference Maker reference 00304045

WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404

More information

Quantity required : 2

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

15
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 2
