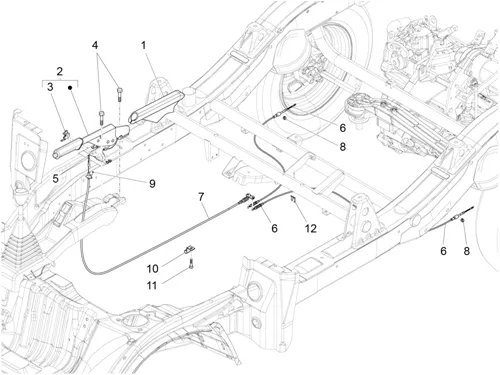

Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015 PIAGGIO VU

Instalation du freins - transmisisons : 05.07 FREIN DE STATIONNEMENT
Frein de stationnement
Search
COVER/PROTECTOR POUSSIERE BRAKE A MAIN OEM PIAGGIO PORTER 2010 > 2020-615091

1
P2R reference P2R reference 114681
Maker reference Maker reference 615091

COVER/PROTECTOR POUSSIERE BRAKE A MAIN OEM PIAGGIO PORTER 2010 > 2020-615091

More information

Quantity required : 1

LEVER BRAKE A MAIN/STATIONNEMENT OEM PIAGGIO PORTER 2020 <-1E002476

2
P2R reference P2R reference 147017
Maker reference Maker reference 1E002476

LEVER BRAKE A MAIN/STATIONNEMENT OEM PIAGGIO PORTER 2020 <-1E002476

More information

Quantity required : 1

651928 - SENSOR

3
P2R reference P2R reference 111070
Maker reference Maker reference 651928

651928 - SENSOR

More information

Quantity required : 1

D9165160822 - BOULON

4
P2R reference P2R reference 110324
Maker reference Maker reference D9165160822

D9165160822 BOLT

More information

Quantity required : 2

NUT M6 OEM PIAGGIO COMMON A LA RANGE-D9411040600

5
P2R reference P2R reference 109797
Maker reference Maker reference D9411040600

NUT M6 OEM PIAGGIO COMMON A LA RANGE-D9411040600

More information

Quantity required : 2

CABLE/CONTROL/TRANSMISSION BRAKE A MAIN OEM PIAGGIO CARGO-613666

6
P2R reference P2R reference 119038
Maker reference Maker reference 613666

CABLE/CONTROL/TRANSMISSION BRAKE A MAIN OEM PIAGGIO CARGO-613666

More information

Quantity required : 2

CABLE/CONTROL/TRANSMISSION BRAKE A MAIN (DU LEVER AU REPARTITEUR) OEM PIAGGIO PORTER-645264

7
P2R reference P2R reference 118797
Maker reference Maker reference 645264

CABLE/CONTROL/TRANSMISSION BRAKE A MAIN (DU LEVER AU REPARTITEUR) OEM PIAGGIO PORTER-645264

More information

Quantity required : 1

WASHER CUVETTE BRAKE DE STATIONNEMENT ORIPIE PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-116232

8
P2R reference P2R reference 111279
Maker reference Maker reference 116232

WASHER CUVETTE BRAKE DE STATIONNEMENT ORIPIE PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-116232

More information

Quantity required : 2

261322 - ECROU

9
P2R reference P2R reference 109787
Maker reference Maker reference 261322

261322 NUT

More information

Quantity required : 1

D9004461389 - COLLIER

10
P2R reference P2R reference 111684
Maker reference Maker reference D9004461389

D9004461389 CLAMP

More information

Quantity required : 1

9161160612000 - BOULON

11
P2R reference P2R reference 109933
Maker reference Maker reference 9161160612000

9161160612000 BOLT

More information

Quantity required : 2

AGRAFE DE MAINTIENT CABLE OF BRAKE A MAIN OEM PIAGGIO PORTER 2020 <-9004465038000

12
P2R reference P2R reference 110441
Maker reference Maker reference 9004465038000

AGRAFE DE MAINTIENT CABLE OF BRAKE A MAIN OEM PIAGGIO PORTER 2020 <-9004465038000

More information

Quantity required : 3
