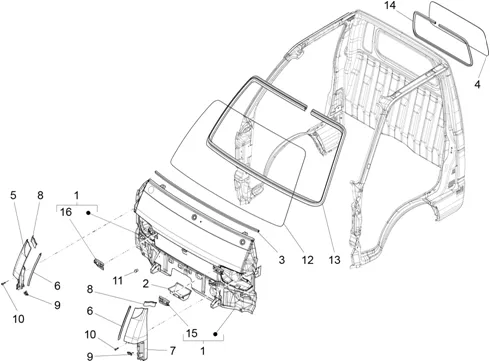

Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015 PIAGGIO VU

Châssis - parties plastiques - carrosseries : 02.27 PARE-BRISE - GLACES
Pare-brise - Glaces
Search
FACE AV HC

1
P2R reference P2R reference
Maker reference Maker reference 6136265

FACE AV HC

PANEL DE CARROSSERIE FRONT OEM PIAGGIO CARGO 2004 > 2017-B0051185

1
P2R reference P2R reference 123529
Maker reference Maker reference B0051185

PANEL DE CARROSSERIE FRONT OEM PIAGGIO CARGO 2004 > 2017-B0051185

More information

Quantity required : 1

COUVERCLE

2
P2R reference P2R reference
Maker reference Maker reference 8723987Z02000

COUVERCLE

PROTECTOR FRONT PANEL FRONT OEM PIAGGIO PORTER 2020 <-D5574187Z01

3
P2R reference P2R reference 111451
Maker reference Maker reference D5574187Z01

PROTECTOR FRONT PANEL FRONT OEM PIAGGIO PORTER 2020 <-D5574187Z01

More information

Quantity required : 1

LUNETTE REAR OEM PIAGGIO PORTER PICK-UP 2020 <-B007327

4
P2R reference P2R reference 117513
Maker reference Maker reference B007327

LUNETTE REAR OEM PIAGGIO PORTER PICK-UP 2020 <-B007327

More information

Quantity required : 1

PANEL DE CARROSSERIE FRONT RIGHT OEM PIAGGIO PORTER 2020-5660835

5
P2R reference P2R reference 117426
Maker reference Maker reference 5660835

PANEL DE CARROSSERIE FRONT RIGHT OEM PIAGGIO PORTER 2020-5660835

More information

Quantity required : 1

PROTECTOR DE PANEL LATERAL FRONT OEM PIAGGIO PORTER 2020 <-5382387Z011306

6
P2R reference P2R reference 112680
Maker reference Maker reference 5382387Z01130

PROTECTOR DE PANEL LATERAL FRONT OEM PIAGGIO PORTER 2020 <-5382387Z011306

More information

Quantity required : 2

PANEL DE CARROSSERIE FRONT LEFT OEM PIAGGIO PORTER 2020 <-5660845

7
P2R reference P2R reference 117424
Maker reference Maker reference 5660845

PANEL DE CARROSSERIE FRONT LEFT OEM PIAGGIO PORTER 2020 <-5660845

More information

Quantity required : 1

PROTECTOR SIDE PANEL OEM PIAGGIO PORTER 2020 <-D5382187Z01

8
P2R reference P2R reference 110697
Maker reference Maker reference D5382187Z01

PROTECTOR SIDE PANEL OEM PIAGGIO PORTER 2020 <-D5382187Z01

More information

Quantity required : 2

CLIPS OEM PIAGGIO PORTER 2020 <-D9004467076

9
P2R reference P2R reference 110367
Maker reference Maker reference D9004467076

CLIPS OEM PIAGGIO PORTER 2020 <-D9004467076

More information

Quantity required : 4

SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614

10
P2R reference P2R reference 110546
Maker reference Maker reference 9004159230000

SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614

More information

Quantity required : 6

CAP/COVER OEM PIAGGIO PORTER 2020 <-D9004874004

11
P2R reference P2R reference 110209
Maker reference Maker reference D9004874004

CAP/COVER OEM PIAGGIO PORTER 2020 <-D9004874004

More information

Quantity required : 1

WINDSCREEN OEM PIAGGIO PORTER 2020 <-B007324

12
P2R reference P2R reference 123440
Maker reference Maker reference B007324

WINDSCREEN OEM PIAGGIO PORTER 2020 <-B007324

More information

Quantity required : 1

GASKET OF PROTECTOR-SCREEN FRONT OEM PIAGGIO PORTER 2020 <-5612187Z01000

13
P2R reference P2R reference 120360
Maker reference Maker reference 5612187Z01000

GASKET OF PROTECTOR-SCREEN FRONT OEM PIAGGIO PORTER 2020 <-5612187Z01000

More information

Quantity required : 1

GASKET LUNETTE REAR OEM PIAGGIO PORTER PICK-UP 2020 <-6483187Z01000

14
P2R reference P2R reference 119110
Maker reference Maker reference 6483187Z01000

GASKET LUNETTE REAR OEM PIAGGIO PORTER PICK-UP 2020 <-6483187Z01000

More information

Quantity required : 1

613865 - EQUERRE

15
P2R reference P2R reference 113717
Maker reference Maker reference 613865

613865 BRACKET

More information

Quantity required : 1

613866 - EQUERRE

16
P2R reference P2R reference 113729
Maker reference Maker reference 613866

613866 BRACKET

More information

Quantity required : 1
