Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

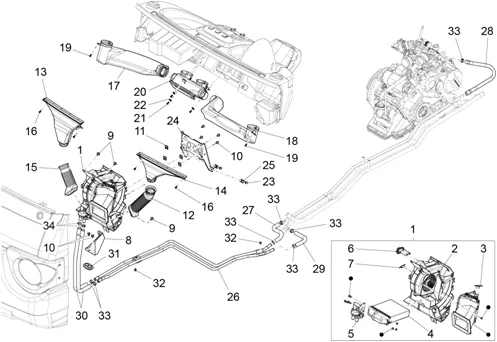

Châssis - parties plastiques - carrosseries : 02.58 SYSTÈME DE CHAUFFAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_02.58.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/7/9/2/img/122792.jpg)
1 |
CHAUFFAGE COMPLETE OEM PIAGGIO PORTER 2011 > 2020-1E000998 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/3/2/7/img/123327.jpg)
2 |
VENTILATEUR COMPLETE DE CHAUFFAGE OEM PIAGGIO PORTER 2011 > 2020-493929 More informationQuantity required : 1 |
||||||
3 |
493933 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/2/4/img/122024.jpg)
4 |
RADIATOR DE CHAUFFAGE OEM PIAGGIO PORTER-493930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/8/8/img/120888.jpg)
5 |
ROBINET/VALVE DE RADIATOR DE CHAUFFAGE OEM PIAGGIO PORTER 2010 > 2020-1E001000 More informationQuantity required : 1 |
||||||
|
6 |
493913 RESISTANCE More informationQuantity required : 1 |
||||||
|
7 |
493932 CLAMP More informationQuantity required : 1 |
||||||
|
8 |
D8743187Z01 BRACKET More informationQuantity required : 1 |
||||||
|
9 |
9004119260000 BOLT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
10 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 6 |
||||||
|
11 |
D9004179138 NUT More informationQuantity required : 4 |
||||||
|
12 |
615100 TUBE More informationQuantity required : 1 |
||||||
|
13 |
5509187Z02000 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
|
14 |
5509287Z02000 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
|
15 |
8723287Z02000 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
16 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 4 |
||||||
|
17 |
614797 TUBE OIL More informationQuantity required : 1 |
||||||
|
18 |
614825 - TUBE HUILE More informationQuantity required : 1 |
||||||
|
18 |
B000513 MANIFOLD A AIR More informationQuantity required : 1 |
||||||
|
19 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 2 |
||||||
|
20 |
614826 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
|
21 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 3 |
||||||
|
22 |
D9004183025 NUT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/5/9/img/110159.jpg)
23 |
SCREW TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9004119537000 More informationQuantity required : 2 |
||||||
|
24 |
612279 CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
25 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
26 |
613677 - TUBE More informationQuantity required : 1 |
||||||
|
27 |
1E001435 - TUBE More informationQuantity required : 1 |
||||||
|
28 |
658326 HOSE RADIAT More informationQuantity required : 1 |
||||||
|
29 |
1E001434 TUBE More informationQuantity required : 1 |
||||||
|
30 |
1E001436 TUBE More informationQuantity required : 2 |
||||||
|
31 |
615524 TAQUET More informationQuantity required : 1 |
||||||
|
32 |
9161160612000 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
33 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
34 |
CLAMP HOSE COOLING OU AIR FILTER (25. 6MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001907 More informationQuantity required : 2 |
