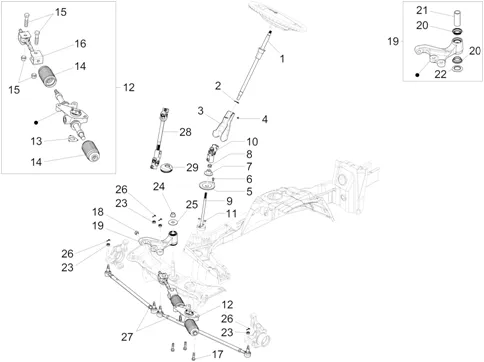

Guidon/direction : 03.07 ARTICULATION DE DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_03.07.PNG)
1 |
614819 BRACKET VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/7/img/113417.jpg)
2 |
9616001500000 CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/2/img/113352.jpg)
3 |
COVER DE STEERING OEM PIAGGIO PORTER 1992 > 2010-4523387Z01000 More informationQuantity required : 1 |
||||||
|
4 |
9004157025000 SCREW More informationQuantity required : 1 |
||||||
|
5 |
B000995 ADAPTEUR PROTECTOR-POUSSIER More informationQuantity required : 1 |
||||||
|
6 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/2/5/img/111925.jpg)
7 |
PROTECTOR POUSSIERE SHAFT INTERMEDIAIRE DE STEERING OEM PIAGGIO PORTER 1995 < 2009-4522287Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/6/2/img/113762.jpg)
8 |
BUSH DE STEERING (21. 5X1615X10) OEM PIAGGIO CARGO-9004387066000 More informationQuantity required : 1 |
||||||
|
9 |
D4522087Z01 - ARBRE More informationQuantity required : 1 |
||||||
|
10 |
658011 ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
11 |
015344 NUT More informationQuantity required : 2 |
||||||
|
12 |
CREMAILLERE/HOUSING DE STEERING COMPLETE OEM PIAGGIO PORTER 1998 > 2009-1R000325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/7/7/3/img/122773.jpg)
12 |
CREMAILLERE DE STEERING OEM PIAGGIO PORTER 2020 <-B0041486 More informationQuantity required : 1 |
||||||
|
13 |
4534287502000 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/5/2/img/119252.jpg)
14 |
SOUFFLET DE CREMAILLERE DE STEERING OEM PIAGGIO CARGO-493413 More informationQuantity required : 1 |
||||||
|
15 |
493412 - KIT UNIONE ** More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/8/3/img/116183.jpg)
16 |
BIELLETTE DE STEERING ENTRE CREMAILLERE ET HOUSING (LIVREE WITHOUT SILENT-BLOC B004680-B004679) OEM PIAGGIO PORTER 2020 <-B004678 More informationQuantity required : 2 |
||||||
|
17 |
9004105165000 - BOULON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/8/7/img/113387.jpg)
18 |
NUT AUTOBLOQUANT/NYLSTOP (M12X125) OEM PIAGGIO COMMON A LA RANGE-261318 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/4/7/9/img/122479.jpg)
19 |
STEERING ARM "PIAGGIO GENUINE PART" PORTER -2624805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/4/9/img/113949.jpg)
20 |
PROTECTOR-POUSSIERE/SOUFFLET TIRANT STEERING OEM PIAGGIO PORTER 1998 > 2005-262479 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/0/4/img/121004.jpg)
21 |
BUSH HOUSING DE STEERING OEM PIAGGIO PORTER 1992 > 2020 9004389104000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/0/9/img/113409.jpg)
22 |
9004210027000 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/0/8/img/151208.jpg)
23 |
NUT BIELLETTE STEERING OEM PIAGGIO PORTER 2020 <-D9004171003 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/6/8/img/112268.jpg)
24 |
NUT OEM PIAGGIO PORTER-9004178043000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/8/9/img/111389.jpg)
25 |
WASHER DE ARM DE STEERING OEM PIAGGIO PORTER 2020 <-9004201638000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/4/8/img/110448.jpg)
26 |
GOUPILLE OEM PIAGGIO PORTER 1998 > 2020-261336 More informationQuantity required : 4 |
||||||
|
27 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/6/4/7/img/118647.jpg)
27 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 2 |
||||||
|
28 |
B023437 ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
29 |
B007654 CIRCLIPS More informationQuantity required : 1 |
