Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015 PIAGGIO VU

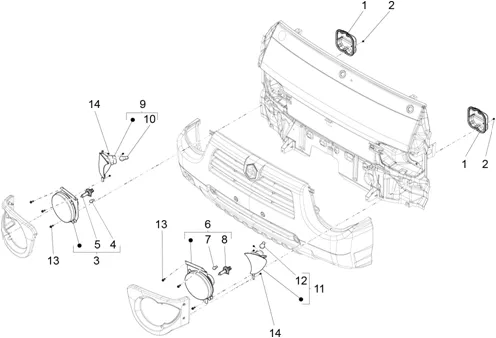

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
Eclairages avant - Clignotants
Search
B000979 - COUVERCLE PROJECTEUR

1
P2R reference P2R reference 115291
Maker reference Maker reference B000979

B000979 COVER HEADLAMP

More information

Quantity required : 2

SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614

2
P2R reference P2R reference 110546
Maker reference Maker reference 9004159230000

SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614

More information

Quantity required : 2

613771 - PHARE AVD

3
P2R reference P2R reference 119071
Maker reference Maker reference 613771

613771 HEADLAMP AVD

More information

Quantity required : 1

9913211050000 - AMPOULE

4
P2R reference P2R reference 111223
Maker reference Maker reference 9913211050000

AMPOULE/LAMPE 12V 5W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-9913211050000

More information

Quantity required : 1

AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723

5
P2R reference P2R reference 66256
Maker reference Maker reference 292723

AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723

More information

Quantity required : 1

613772 - PHARE AVG

6
P2R reference P2R reference 118959
Maker reference Maker reference 613772

613772 HEADLAMP AVG

More information

Quantity required : 1

9913211050000 - AMPOULE

7
P2R reference P2R reference 111223
Maker reference Maker reference 9913211050000

AMPOULE/LAMPE 12V 5W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-9913211050000

More information

Quantity required : 1

AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723

8
P2R reference P2R reference 66256
Maker reference Maker reference 292723

AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723

More information

Quantity required : 1

613773 - INDICATORE DIREZ. DX

9
P2R reference P2R reference 119602
Maker reference Maker reference 613773

613773 INDICATORE DIREZ. DX

More information

Quantity required : 1

AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654

10
P2R reference P2R reference 65758
Maker reference Maker reference 160654

AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654

More information

Quantity required : 1

613774 - INDICATORE DIREZ. SX

11
P2R reference P2R reference 119356
Maker reference Maker reference 613774

613774 INDICATORE DIREZ. SX

More information

Quantity required : 1

AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654

12
P2R reference P2R reference 65758
Maker reference Maker reference 160654

AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654

More information

Quantity required : 1

D9338515020 - VIS

13
P2R reference P2R reference 110342
Maker reference Maker reference D9338515020

D9338515020 SCREW

More information

Quantity required : 6

SCREW AUTOFOREUSE (4, 2X9, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015900

14
P2R reference P2R reference 65402
Maker reference Maker reference 0159005

SCREW AUTOFOREUSE (4, 2X9, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015900

More information

Quantity required : 6
