Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

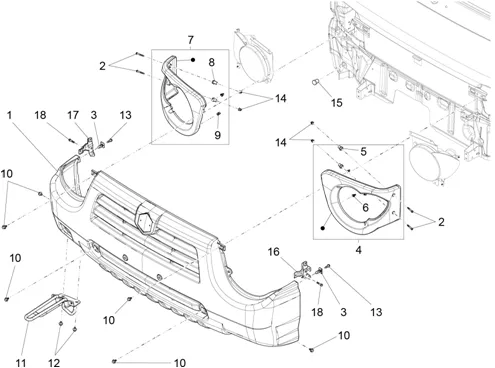

Châssis - parties plastiques - carrosseries : 02.36 PROTECTIONS AVANT - BAVETTES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_02.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/1/9/7/img/121197.jpg)
1 |
PROTECTOR CHOC FRONT OEM PIAGGIO CARGO 2004 >-615235 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/8/0/img/109780.jpg)
2 |
SCREW CRUCIFORME (4. 8X38) TARAUD OEM PIAGGIO COMMON A LA RANGE-614772 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/2/2/img/110522.jpg)
3 |
CLIPS OEM PIAGGIO PORTER 2020 <-D9004468200 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/6/3/img/114063.jpg)
4 |
COVER/MOULURE HEADLAMP LEFT OEM PIAGGIO CARGO-615274 More informationQuantity required : 1 |
|||||||||
5 |
613349 SPACER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
6 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/5/8/img/114458.jpg)
7 |
COVER/MOULURE HEADLAMP LEFT OEM PIAGGIO CARGO-615275 More informationQuantity required : 1 |
|||||||||
|
8 |
613349 SPACER More informationQuantity required : 2 |
|||||||||
|
9 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/5/9/img/110159.jpg)
10 |
SCREW TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9004119537000 More informationQuantity required : 6 |
|||||||||
|
11 |
|
|||||||||
|
12 |
BOULON |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/2/9/img/110329.jpg)
13 |
D9004159364 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/0/img/111460.jpg)
14 |
CLIPS OEM PIAGGIO PORTER 2020 <-004189001000 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.jpg)
15 |
CAP/COVER OEM PIAGGIO PORTER 2020 <-D9004874004 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/0/5/5/img/115055.jpg)
16 |
BRACKET PROTECTOR CHOCS FRONT LEFT OEM PIAGGIO PORTER 1992 < 2020-5213487Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/9/2/img/114992.jpg)
17 |
BRACKET PROTECTOR-CHOCS FRONT RIGHT OEM PIAGGIO PORTER 1992 > 2020-5213387Z01000 More informationQuantity required : 1 |
|||||||||
|
18 |
SCREW TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9004119537000 More informationQuantity required : 4 |
|||||||||
