Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

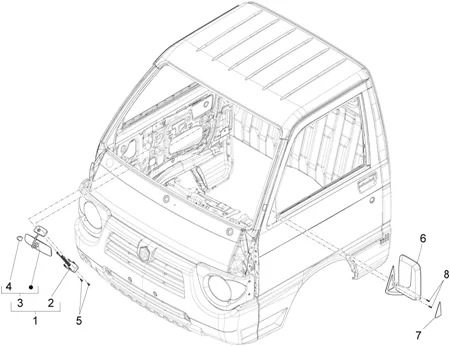

Châssis - parties plastiques - carrosseries : 02.45 RÉTROVISEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_02.45.PNG)
1 |
B007919 - RETROVISEUR INT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/7/9/6/img/119796.jpg)
1 |
MIRROR INNER OEM PIAGGIO PORTER, CARGO 2010 > 2020-B007907 More informationQuantity required : 1 |
||||||
|
1 |
B007369 MIRROR INT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/7/9/img/117479.jpg)
2 |
ECLAIRAGE DE COURTOISIE OEM PIAGGIO PORTER 2010 > 2020, THREE-WHEELER APE CALESSINO 2013 > 2017-B007908 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/8/0/img/117480.jpg)
3 |
INTERIOR MIRROR- "PIAGGIO GENUINE PART" PORTER -B007911 More informationQuantity required : 0 |
||||||
|
4 |
B007913 BUFFER More informationQuantity required : 0 |
||||||
|
5 |
D9338515020 SCREW More informationQuantity required : 2 |
||||||
|
5 |
487990 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/1/4/img/119214.jpg)
6 |
RIGHT MIRROR OEM PIAGGIO PORTER 1992 > 2009-8791087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/1/8/9/img/119189.jpg)
6 |
LEFT MIRROR OEM PIAGGIO PORTER 1992 > 2009, CARGO-8794087Z01000 More informationQuantity required : 1 |
||||||
|
7 |
8791587Z01000 COVER More informationQuantity required : 1 |
||||||
|
7 |
8794587Z01000 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/0/img/69210.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-842041 More informationQuantity required : 4 |
||||||
|
8 |
D9321955016 SCREW More informationQuantity required : 4 |
