Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

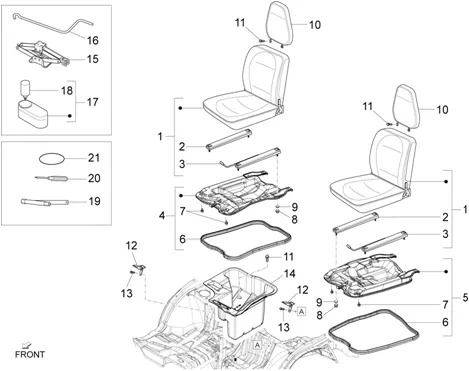

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES - TROUSSE À OUTILS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_02.39.PNG)
1 |
B005653 SEDILE More informationQuantity required : 2 |
||||||
|
2 |
GUIDE DR. |
||||||
|
3 |
GUIDE GAU. |
||||||
|
4 |
645973 COPERC. ISP. * * More informationQuantity required : 1 |
||||||
|
4 |
CM038405 COVER ENGINE More informationQuantity required : 1 |
||||||
|
5 |
645972 - COUVERCLE More informationQuantity required : 1 |
||||||
|
5 |
CM038406 COVER ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/3/5/img/121735.jpg)
6 |
GASKET OF SIEGE FRONT OEM PIAGGIO PORTER 2020 <-615932 More informationQuantity required : 1 |
||||||
|
7 |
TAMPON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
8 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
8 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 8 |
||||||
|
10 |
614004 POGGIATESTA More informationQuantity required : 2 |
||||||
|
11 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/5/6/img/114856.jpg)
12 |
CHARNIERE SIEGE FRONT OEM PIAGGIO PORTER 2020 <-7137087Z01000 More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
|
14 |
644425 BRACKET More informationQuantity required : 1 |
||||||
|
15 |
B000878 CRIC More informationQuantity required : 1 |
||||||
|
16 |
0911387Z01000 GRIP More informationQuantity required : 1 |
||||||
|
17 |
646230 KIT RIPARAZIONE GOMME More informationQuantity required : 1 |
||||||
|
18 |
BOMBE ANTI-CREVAISON VTL |
||||||
|
19 |
214227 CLE SPARK PLUG More informationQuantity required : 1 |
||||||
|
20 |
183059-TOURNEVIS More informationQuantity required : 1 |
||||||
|
21 |
124980 TIRANT More informationQuantity required : 1 |
