Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

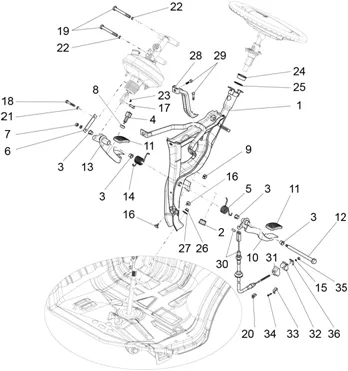

Instalation du freins - transmisisons : 05.05 GROUPE PÉDALES - LEVIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_05.05.PNG)
1 |
613687 - SUPPORT More informationQuantity required : 1 |
||||||
|
2 |
9004385001000 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/2/4/img/115124.jpg)
3 |
9004386115000 - BUSE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/8/9/img/115889.jpg)
4 |
CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289 More informationQuantity required : 1 |
||||||
|
4 |
Interrupteur |
||||||
|
5 |
646181 SPRING More informationQuantity required : 1 |
||||||
|
6 |
3132587Z01000 PLATE BLOCAGE SPINDLE More informationQuantity required : 1 |
||||||
|
7 |
ECROU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/4/img/65824.jpg)
8 |
NUT CONTACTEUR STOP OEM PIAGGIO THREE-WHEELER APE TM 703, PORTER, CARGO 2020 <-196750 More informationQuantity required : 1 |
||||||
|
9 |
COLLIER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/6/5/img/119365.jpg)
10 |
PEDALE CLUTCH OEM PORTER 2009 > 2020-3130187Z07000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/6/8/img/112068.jpg)
11 |
PROTECTOR/RUBBER DE PEDALE OEM PIAGGIO PORTER 2020 <-262128 More informationQuantity required : 2 |
||||||
|
12 |
SPINDLE PEDALE CLUTCH OEM PIAGGIO PORTER 2020 <-D3132487Z02 More informationQuantity required : 1 |
||||||
|
13 |
4710187Z04000 PEDALE BRAKE More informationQuantity required : 1 |
||||||
|
14 |
9004508351000 SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
15 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005970 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/7/img/113357.jpg)
16 |
BUFFER RUBBER DE PEDALE CLUTCH OEM PIAGGIO PORTER 1998-2020-1E000539 More informationQuantity required : 2 |
||||||
|
16 |
BUFFER RUBBER DE PEDALE CLUTCH OEM PIAGGIO PORTER 1998-2020-1E000539 More informationQuantity required : 2 |
||||||
|
17 |
9004240142000 PERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
18 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
|
19 |
262125 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/7/img/65927.jpg)
20 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-216983 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
21 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
22 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
23 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208 More informationQuantity required : 1 |
||||||
|
24 |
9004386033000 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/8/5/img/110285.jpg)
25 |
WASHER NYLON STEERING OEM PIAGGIO PORTER 2020 <-D9004202038 More informationQuantity required : 1 |
||||||
|
26 |
ECROU |
||||||
|
27 |
RONDELLE |
||||||
|
28 |
5532687Z03000 TUBE STEERING More informationQuantity required : 1 |
||||||
|
29 |
D9165160820 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/6/6/7/img/118667.jpg)
30 |
CABLE/COMMANE/TRANSMISSION CLUTCH OEM PIAGGIO CARGO 2004 > 2017-1E000175 More informationQuantity required : 1 |
||||||
|
31 |
615550 TAQUET More informationQuantity required : 1 |
||||||
|
32 |
PLAQUE |
||||||
|
33 |
Collier |
||||||
|
34 |
9165140616000 - BOULON More informationQuantity required : 1 |
||||||
|
35 |
615669 NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/2/6/7/img/114267.jpg)
36 |
AGRAPHE OEM PIAGGIO PORTER 2020 <-B005055 More informationQuantity required : 1 |
