Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

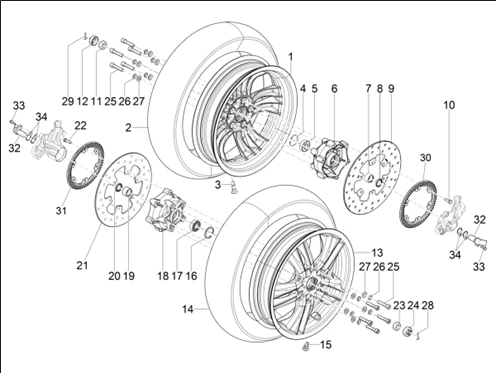

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_04.11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/2/2/img/158222.jpg)
1 |
FRONT WHEEL "PIAGGIO GENUINE PART" 300 HPE 2019> -1C004474000XNM More informationQuantity required : 1 |
||||||
2 |
2B000757 - PNEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
3 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
4 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/3/0/img/75030.jpg)
5 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177610 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/7/1/img/87171.jpg)
6 |
FRONT WHEEL HUB "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS -650907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/8/img/65778.jpg)
7 |
ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/3/img/75023.jpg)
8 |
FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/4/6/4/img/151464.jpg)
9 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019>, 350-500 MP3 2018> -1C003375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/3/7/img/76037.jpg)
9 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 300-500 MP3 2014> -1C000681 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/5/6/img/90156.jpg)
10 |
667153 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/1/img/65601.jpg)
11 |
021114 - ECROU S02111400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/9/img/75029.jpg)
12 |
CAP - FOR WHEEL "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER -177609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/8/9/img/82189.jpg)
13 |
FRONT WHEEL "PIAGGIO GENUINE PART" 300 YOURBAN DARK GREY -58618R More informationQuantity required : 1 |
||||||
|
13 |
FRONT WHEEL "PIAGGIO GENUINE PART" 300 HPE 2019> -1C004474000XNM More informationQuantity required : 1 |
||||||
|
14 |
2B000757 - PNEU More informationQuantity required : 1 |
||||||
|
15 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
16 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635 More informationQuantity required : 1 |
||||||
|
17 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177610 More informationQuantity required : 1 |
||||||
|
18 |
FRONT WHEEL HUB "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS -650907 More informationQuantity required : 1 |
||||||
|
19 |
ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442 More informationQuantity required : 1 |
||||||
|
20 |
FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443 More informationQuantity required : 1 |
||||||
|
21 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019>, 350-500 MP3 2018> -1C003375 More informationQuantity required : 1 |
||||||
|
21 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 300-500 MP3 2014> -1C000681 More informationQuantity required : 1 |
||||||
|
22 |
667153 - VIS More informationQuantity required : 6 |
||||||
|
23 |
021114 - ECROU S02111400 More informationQuantity required : 1 |
||||||
|
24 |
CAP - FOR WHEEL "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER -177609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
25 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
26 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/8/img/68798.jpg)
27 |
WHEEL WASHER OR CALIPER WASHER "PIAGGIO GENUINE PART" 125-300-400 MP3, 125-250-300 VESPA GTS, BEVERLY, CARNABY/GILERA 125-250-300 NEXUS -828961 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
28 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 More informationQuantity required : 1 |
||||||
|
29 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/2/7/img/151227.jpg)
30 |
ABS PHONIC WHEEL(FRONT) "PIAGGIO GENUINE PART" 300-350-500 MP3 2014> -2B0006075 More informationQuantity required : 1 |
||||||
|
31 |
ABS PHONIC WHEEL(FRONT) "PIAGGIO GENUINE PART" 300-350-500 MP3 2014> -2B0006075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/4/0/img/85740.jpg)
32 |
SENSOR FOR FRONT ABS "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -639366 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
33 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/2/img/90442.jpg)
34 |
668780 - RONDELLE More informationQuantity required : 4 |
||||||
|
34 |
668780 - RONDELLE More informationQuantity required : 4 |
