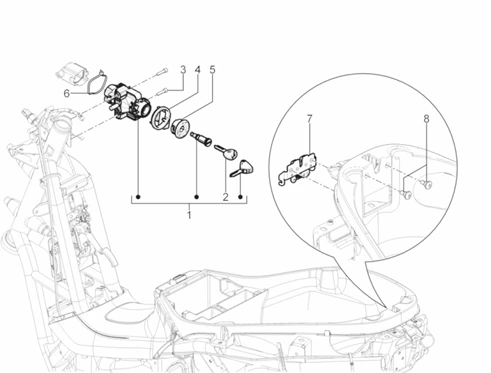

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.46.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/9/0/img/158190.jpg)
1 |
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019 -1B006812 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/9/1/img/158191.jpg)
2 |
KEYBLANK "PIAGGIO GENUINE PART" 125-300 YOURBAN 2011> -1B006810 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/0/img/65440.jpg)
3 |
018553 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/0/img/67790.jpg)
4 |
ANTENNA FOR CDI UNIT"PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -638534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/3/8/img/89738.jpg)
5 |
FRONT COWL- SWITCH COVER "PIAGGIO GENUINE PART" 125-300 YOURBAN -657349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
7 |
SADDLE LOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM023704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
8 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 2 |
