Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

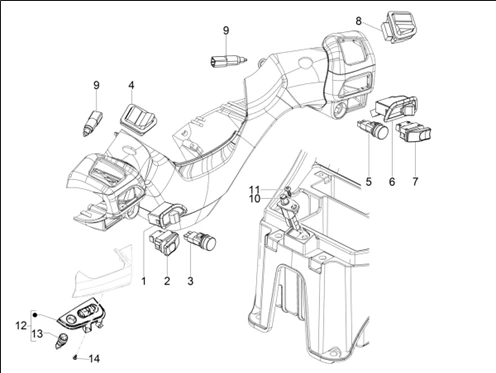

Circuit électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_06.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/4/img/67984.jpg)
1 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -6426795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/3/4/img/86234.jpg)
2 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER RANGE -641743 More informationQuantity required : 1 |
||||||
|
2 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER RANGE -641743 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/5/img/67265.jpg)
3 |
HAZARD WARNING SWITCH "PIAGGIO GENUINE PART" 125-250-400 MP3, X-EVO, X9/APRILIA 250-300-400-500 SCARABEO -58284R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
4 |
HEADLIGHT SELECTOR SWITCH "PIAGGIO GENUINE PART" 125-250-300-400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, 125 RUNNER -642670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/7/7/img/81777.jpg)
5 |
PULSANTE MODE "PIAGGIO GENUINE PART" 125-250-400 MP3, X-EVO, 125-300-350 BEVERLY -58255R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/1/8/7/img/86187.jpg)
6 |
ROLL-LOCK SWITCH (LARGE MODEL) "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -641448 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/3/3/img/156133.jpg)
7 |
1D002297 - POUSS. DEMARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
8 |
ENGINE STOP SWITCH "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -641824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
9 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/1/img/66011.jpg)
10 |
HELMET COMPARTMENT LIGHT SWITCH "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -255323 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
11 |
018536 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/4/3/img/158243.jpg)
12 |
1D002635 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/5/3/2/img/86532.jpg)
13 |
"ASR" SWITCH "PIAGGIO GENUINE PART" PIAGGIO 300-350 MP3 2014>, 350 MP3 2018>, 300 BEVERLY 2016>, 350 BEVERLY 2013>, 125-350-500 X10 2012> -643130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 2 |
