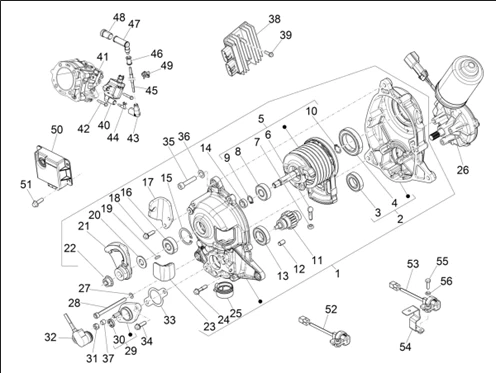

Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)
Circuit électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_06.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/8/3/img/90183.jpg)
1 |
ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 - 667185 More informationQuantity required : 1 |
||||||
2 |
846939 - BOITE DISP.ANTIROLLIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/3/3/img/92733.jpg)
3 |
82627R - ROULEMENT More informationQuantity required : 1 |
||||||
|
4 |
846977 - ROULEMENT More informationQuantity required : 1 |
||||||
|
5 |
648641 - GR.RESSORT More informationQuantity required : 1 |
||||||
|
6 |
648700 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
7 |
020206 - ECROU S02020600 More informationQuantity required : 1 |
||||||
|
8 |
843701 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/2/img/63812.jpg)
9 |
006412 - CIRCLIPS S00641200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/7/7/img/109777.jpg)
10 |
006414 - CIRCLIPS S00641400 More informationQuantity required : 1 |
||||||
|
11 |
667172 - AXE PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
12 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916 More informationQuantity required : 2 |
||||||
|
13 |
82627R - ROULEMENT More informationQuantity required : 1 |
||||||
|
14 |
846834 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
15 |
006632 - ANNEAU ELAST. S00663200 More informationQuantity required : 1 |
||||||
|
16 |
843701 - ROULEMENT More informationQuantity required : 1 |
||||||
|
17 |
649025 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
18 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
19 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267 More informationQuantity required : 1 |
||||||
|
20 |
646516 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
21 |
649402 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
22 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519 More informationQuantity required : 1 |
||||||
|
23 |
647190 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
24 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 4 |
||||||
|
25 |
648800 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/0/img/158250.jpg)
26 |
1C004215 - MOTEUR ELECTRIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
27 |
006966 - RONDELLE S00696600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/5/img/66605.jpg)
28 |
481032 - VIS DE FILTRE FX More informationQuantity required : 3 |
||||||
|
29 |
667179 - PLAQUE POUR SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/6/5/img/90165.jpg)
30 |
667171 - BAGUE ETANCHEITEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
31 |
195482 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/6/8/img/146568.jpg)
32 |
ROTARY SENSOR "PIAGGIO GENUINE PART" 125-300-500 MP3 -6425555 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/4/7/img/86947.jpg)
33 |
649367 - JOINT More informationQuantity required : 1 |
||||||
|
34 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/9/img/78329.jpg)
35 |
319538 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
36 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
|
37 |
667159 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
38 |
1A012332 - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
|
39 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
40 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 FLY3 VALVES, LIBERTY 3 VALVES, VESPA LX 3 VALVES, 125-350 YOURBAN, BEVERLY, X-10 -641901 More informationQuantity required : 1 |
||||||
|
41 |
1A014547 - PLAQUE SUPPORT TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
42 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/3/img/67903.jpg)
43 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125 CC -641040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/2/img/67942.jpg)
44 |
INSULATION SHELL FOR SPARK PLUG CAP "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 125CC -6417256 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
45 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 2 |
||||||
|
46 |
1A010795 - PASSE CABLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
47 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -969348 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/7/img/67937.jpg)
48 |
SPARK PLUG PROTECTION CLAMP "PIAGGIO GENUINE PART" -641643 More informationQuantity required : 2 |
||||||
|
49 |
191002 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/5/2/img/85952.jpg)
50 |
ELECTRONIC PARKING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -640439 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
51 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/8/7/9/img/85879.jpg)
52 |
END OF THE STROKE SWITCH - SUSPENSION BLOCKING "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640063 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/3/9/img/92139.jpg)
53 |
680071 - CAPTEUR D'INCLINAISON More informationQuantity required : 2 |
||||||
|
54 |
642672 - PLAQUE POUR SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
55 |
031088 - VIS S03108800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
56 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
