Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

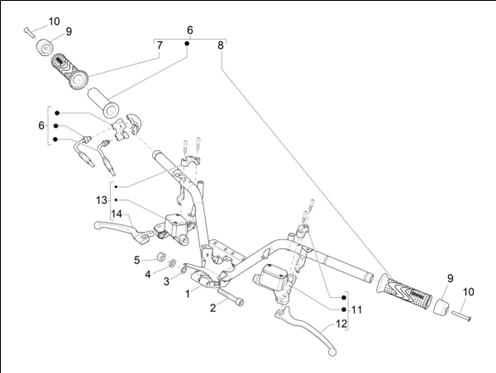

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_03.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/1/1/img/158211.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART"300-500 MP3 BUZINESS 2014>, 350 MP3 2018> -1B006542R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/5/9/img/90459.jpg)
2 |
668874 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
3 |
267917 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
015330 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/1/2/img/158212.jpg)
6 |
CM087724 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/5/img/95785.jpg)
7 |
RIGHT HAND GRIP "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3, 125-300-350 BEVERLY, 125-350-500 X10 -CM084202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/4/img/95784.jpg)
8 |
LEFT HAND GRIP "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3, 125-300-350 BEVERLY, 125-350-500 X10 -CM084201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/0/9/2/img/91092.jpg)
9 |
BAR ENDS - BLACK "PIAGGIO GENUINE PART" 125-350 X10 2012>, BEVERLY 2010>, 300 YOURBAN 2011>, 500 MP3 2011>/GILERA 500 FUOCO 2007> -673339 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/6/5/img/158365.jpg)
10 |
SCREW - FOR BAR ENDS -1B006376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/4/4/8/img/151448.jpg)
11 |
CM290508 - MAITRE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/1/2/0/img/140120.jpg)
12 |
LEFT/RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 300-350-500 MP3 BUSINESS HENG-TONG (VERSION ABS) -1C001294 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/4/4/9/img/151449.jpg)
13 |
RIGHT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 300-350-500 MP3 2014> -CM290507 More informationQuantity required : 1 |
||||||
|
14 |
LEFT/RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 300-350-500 MP3 BUSINESS HENG-TONG (VERSION ABS) -1C001294 More informationQuantity required : 1 |
