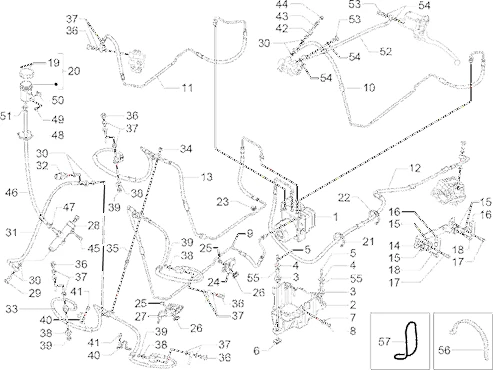

Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA

	P2R reference	158234
	Maker reference	1C004341

1C004341 - CENTRALE

	P2R reference	158235
	Maker reference	1C004324

1C004324 - SUPPORT

	P2R reference	67134
	Maker reference	576565

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -576565

	P2R reference	65356
	Maker reference	0130925

013092 - RONDELLE S01309200

	P2R reference	65447
	Maker reference	0186395

018639 - VIS

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	72597
	Maker reference	AP9100053

AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5

	P2R reference	110649
	Maker reference	840541

840541 - VIS

	P2R reference	158236
	Maker reference	1C003935

1C003935 - CANALISATION FREINS

	P2R reference	158237
	Maker reference	1C003931

1C003931 - CANALISATION FREINS

	P2R reference	158238
	Maker reference	1C003932

1C003932 - CANALISATION FREINS

	P2R reference	158239
	Maker reference	1C003934

1C003934 - CANALISATION FREINS

	P2R reference	158240
	Maker reference	1C003933

1C003933 - CANALISATION FREINS

	P2R reference	78260
	Maker reference	2B001132

2B001132 - SUPPORT

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	68067
	Maker reference	649378

649378 - COLLIER

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	72725
	Maker reference	B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792

	P2R reference	79623
	Maker reference	498431

498431 - BOUCHON RESERV LOOCK

	P2R reference	77469
	Maker reference	274598

MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	65790
	Maker reference	179013

179013 - RESSORT

	P2R reference	75907
	Maker reference	1B001658

1B001658 - PLAQUE SUPPORT TUYAU

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	65998
	Maker reference	248419

248419 - PLAQUETTE PLASTIQUE

	P2R reference	78108
	Maker reference	2B000665

2B000665 - PLAQUE SUPPORT TUYAU

	P2R reference	86871
	Maker reference	648798

BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -648798

	P2R reference	127555
	Maker reference	1C002059R

1C002059R - VIS

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	83044
	Maker reference	601781

BRAKE PIPE-FROM MAIN MASTER CYLINDER TO PRESSURE UNIT "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601781

	P2R reference	85926
	Maker reference	640295

OIL PRESSURE SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640295

	P2R reference	217076
	Maker reference	1C0041296

1C0041296 - TUYAU

	P2R reference	158241
	Maker reference	1C004129
	Replaced by référence 217076

1C004129 - TUYAU

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

	P2R reference	78246
	Maker reference	2B000952

2B000952 - VIS SANS T?TE

	P2R reference	127555
	Maker reference	1C002059R

1C002059R - VIS

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	65368
	Maker reference	0139505

013950 - RONDELLE S01395000

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

	P2R reference	83058
	Maker reference	601970

601970 - COLLIER

	P2R reference	70959
	Maker reference	969296

969296 - BOULON

	P2R reference	82228
	Maker reference	597033

597033 - JOINT FREIN

	P2R reference	87271
	Maker reference	651461

651461 - VIS DE PURGE FREIN

	P2R reference	87272
	Maker reference	651462

651462 - CAPUCHON

	P2R reference	65447
	Maker reference	0186395

018639 - VIS

	P2R reference	158242
	Maker reference	1C004562

1C004562 - TUYAU HUILE

	P2R reference	72863
	Maker reference	CM001901

CM001901 - COLLIER

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	72925
	Maker reference	CM017409

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409

	P2R reference	72874
	Maker reference	CM001913

COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913

	P2R reference	158233
	Maker reference	1C004058

1C004058 - CANALISATION FREINS

	P2R reference	127555
	Maker reference	1C002059R

1C002059R - VIS

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	66123
	Maker reference	273288

SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288

	P2R reference	71394
	Maker reference	AP8120416

AP8120416 - COLLIER, NOIR

	P2R reference	72299
	Maker reference	AP8221150

AP8221150 - GUIDE-CABLE
