Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

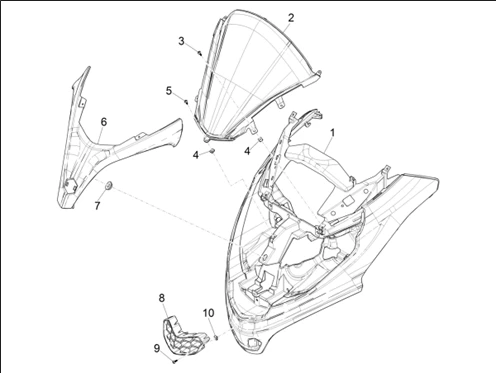

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.26.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/0/1/2/img/199012.jpg)
1 |
1B007172000NO - SHIELD More informationQuantity required : 1 |
||||||
1 |
1B007172000B12 - SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/5/3/img/174553.jpg)
1 |
1B007172000BR - PAINTED FRONT SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/5/4/img/174554.jpg)
1 |
1B007172000HT - PAINTED FRONT SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/2/4/img/158124.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019> BLACK 80/B -1B007172000NI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/5/5/img/174555.jpg)
1 |
1B007172000H4 - PAINTED FRONT SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/5/6/img/174556.jpg)
1 |
1B007172000XN2 - PAINTED FRONT SHIELD More informationQuantity required : 1 |
||||||
|
1 |
1B007172 - TABLIER AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/2/9/img/158129.jpg)
2 |
1B0059980000C - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 3 |
||||||
|
6 |
1B006001 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/3/0/img/158130.jpg)
6 |
FRONT SHIELD - UPPER - "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019> BASIC VERSION -1B006001000NA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/3/1/img/158131.jpg)
6 |
FRONT SHIELD - UPPER - "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019> BASIC VERSION -1B006001000HX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
7 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/3/2/img/158132.jpg)
8 |
1B006002 - GRILLE More informationQuantity required : 1 |
||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
|
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
