Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

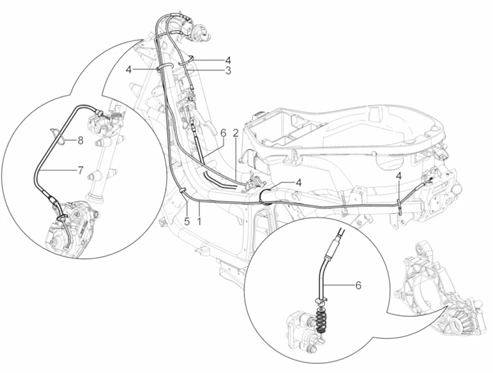

Instalation du freins - transmisisons : 05.03 TRANSMISISONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_05.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/4/2/img/95142.jpg)
1 |
CM012845 - TRANSMISSION SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/4/1/img/95141.jpg)
2 |
CM012844 - TRANSMISSION POUR ABATTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/3/3/img/90633.jpg)
3 |
672118 - TRANSMISSION FREIN PARKING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
4 |
257134 - COLLIER More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
5 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/3/0/img/90030.jpg)
6 |
TRANSMISSION CABLE FOR PARKING BRAKE (FROM LEVER TO CALIPER) "PIAGGIO GENUINE PART" 125-300 YOURBAN 2012>, 300 MP3 HPE 2019> -666420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/8/1/img/86981.jpg)
7 |
CABLE KIT FOR PARKING BRAKE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649663 More informationQuantity required : 1 |
||||||
|
8 |
257134 - COLLIER More informationQuantity required : 1 |
