Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

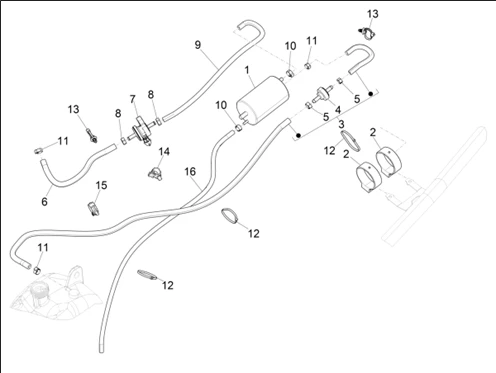

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.61.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/1/0/img/140010.jpg)
1 |
1B003695 - CANISTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/1/4/img/140014.jpg)
2 |
1B003721 - PLAQUETTE More informationQuantity required : 2 |
||||||
3 |
1B0063219 - RENIFLARD COMPLET More informationQuantity required : 1 |
||||||
|
4 |
CM179008 - VOLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
5 |
CM001914 - COLLIER More informationQuantity required : 2 |
||||||
|
6 |
CM183335 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/0/5/img/158205.jpg)
7 |
B018242 - VALVE COMPLETE More informationQuantity required : 1 |
||||||
|
8 |
CM001914 - COLLIER More informationQuantity required : 2 |
||||||
|
9 |
CM183403 - TUYAU SAE J30R7/R14T2 3/16" L=620 More informationQuantity required : 1 |
||||||
|
10 |
CM001914 - COLLIER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
11 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
12 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
13 |
1D001143 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
14 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
15 |
CM006903 - RESSORT More informationQuantity required : 1 |
||||||
|
16 |
CM001444 - TUYAU RENIFLARD More informationQuantity required : 2 |
