Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

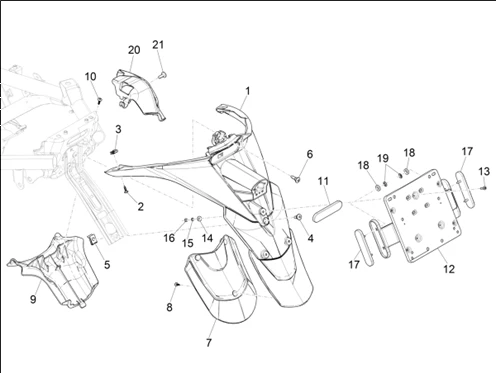

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.37.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/8/3/img/158183.jpg)
1 |
1B0063970000C - PARE BOUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/8/1/7/img/89817.jpg)
7 |
SPLASH GUARD EXTENSION "PIAGGIO GENUINE PART" PIAGGIO 125-300 YOURBAN -657405000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/4/9/img/89749.jpg)
9 |
657362 - COUVRE CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
11 |
REAR REFLECTOR "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO RANGE -58233R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/8/9/img/140089.jpg)
12 |
1B004123 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
13 |
015996 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
14 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
15 |
016670 - RONDELLE S01667000 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
16 |
020104 - ECROU S02010400 More informationQuantity required : 3 |
||||||
|
17 |
REAR REFLECTOR "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO RANGE -58233R5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/6/img/66586.jpg)
18 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER -479882 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
19 |
181351 - PLAQUETTE More informationQuantity required : 4 |
||||||
20 |
1B006514 - CABLES ENGINE COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
21 |
CM179301 - VIS More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
