Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

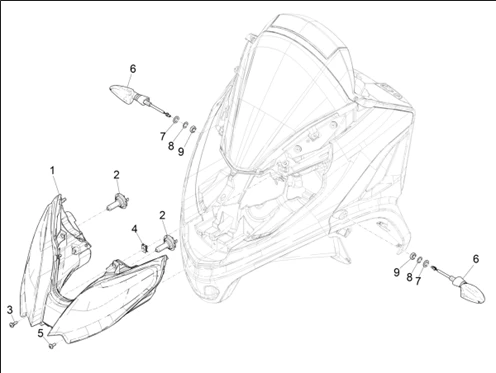

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/4/4/img/158244.jpg)
1 |
1D002631 - INDICATEUR DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
2 |
231215 - AMPOULE 12V-35/35W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
5 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/4/5/img/158245.jpg)
6 |
1D002601 - CLIGNOTANT AV More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
7 |
016626 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
8 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
9 |
021210 - ECROU EX 319438 + S02121000 More informationQuantity required : 2 |
