Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

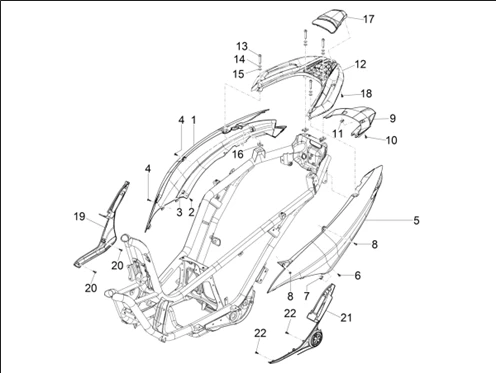

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.32.png)
1 |
65738100NO - R.H. BODY SIDE More informationQuantity required : 1 |
||||||
|
1 |
65738100B12 - R.H. BODY SIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/8/1/img/89781.jpg)
1 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-300 YOURBAN WHITE 544 -65738100BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/5/9/img/158159.jpg)
1 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-300 YOURBAN SPORTY VERSION -65738100HT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/0/img/158160.jpg)
1 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 300 YOURBAN HPE BLACK 80/B -65738100NI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/1/img/158161.jpg)
1 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-300 YOURBAN BASIC VERSION -65738100H4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/8/6/img/89786.jpg)
1 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-300 YOURBAN BLACK 98/A -65738100XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/8/0/img/89780.jpg)
1 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-300 YOURBAN RAW TO BE PAINTED -657381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
|
5 |
65738000B12 - LEFT COVER More informationQuantity required : 1 |
||||||
|
5 |
65738000NO - LEFT COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/2/img/158162.jpg)
5 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 300 YOURBAN HPE SPORTY VERSION -65738000HT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/7/3/img/89773.jpg)
5 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-300 YOURBAN WHITE 544 -65738000BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/3/img/158163.jpg)
5 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 300 YOURBAN HPE BLACK 80/B -65738000NI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/4/img/158164.jpg)
5 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-300 YOURBAN BASIC VERSION -65738000H4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/7/8/img/89778.jpg)
5 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-300 YOURBAN BLACK 98/A -65738000XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/7/2/img/89772.jpg)
5 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-300 YOURBAN RAW TO BE PAINTED -657380 More informationQuantity required : 1 |
||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604 More informationQuantity required : 1 |
||||||
|
7 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
|
9 |
65738500NO - REAR COVER More informationQuantity required : 1 |
||||||
|
9 |
65738500B12 - REAR COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/5/img/158165.jpg)
9 |
65738500NI - COUVRE FLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/6/img/158166.jpg)
9 |
65738500HT - COUVRE FLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/9/5/img/89795.jpg)
9 |
REAR FAIRINGS CLOSING "PIAGGIO GENUINE PART" 125-300 YOURBAN WHITE 544 -65738500BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/7/img/158167.jpg)
9 |
65738500H4 - COUVRE FLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/8/0/0/img/89800.jpg)
9 |
65738500XN2 - COUVRE FLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/9/4/img/89794.jpg)
9 |
657385 - COUVRE FLANC More informationQuantity required : 1 |
||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 1 |
||||||
|
11 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/8/img/158168.jpg)
12 |
PASSENGER HANDLE "PIAGGIO GENUINE PART" 300 YOURBAN HPE- FOR SPORT VERSION -65738300NA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/6/9/img/158169.jpg)
12 |
PASSENGER HANDLE "PIAGGIO GENUINE PART" 300 YOURBAN HPE- FOR BASIC VERSION -65738300HX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/9/0/img/89790.jpg)
12 |
PASSENGER HANDLE "PIAGGIO GENUINE PART" 125-300 YOURBAN - RAW TO BE PAINTED -657383- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/5/9/5/img/89595.jpg)
13 |
656894 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
14 |
012540 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
15 |
003058 - RONDELLE S00305800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
16 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/9/3/img/89793.jpg)
17 |
PASSENGER HANDLE COVER "PIAGGIO GENUINE PART" 125-300 YOURBAN -657384000C- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
18 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/6/5/img/89765.jpg)
19 |
RIGHT COWL DEFLECTOR "PIAGGIO GENUINE PART" 300 YOURBAN -657377000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
20 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/7/6/4/img/89764.jpg)
21 |
LEFT COWL DEFLECTOR "PIAGGIO GENUINE PART" 300 YOURBAN -657376000C More informationQuantity required : 1 |
||||||
|
22 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
