Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

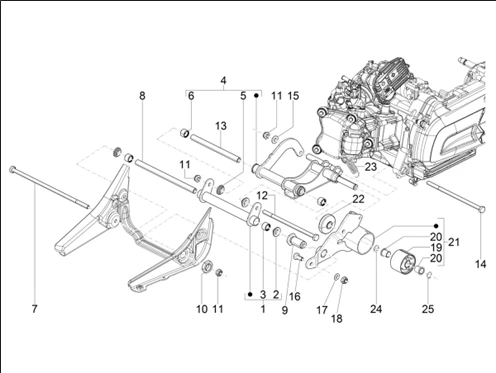

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_04.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/6/6/img/158366.jpg)
1 |
1C0045085 - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
2 |
GASKET FOR SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER /MAXISCOOTER -597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
3 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/7/3/img/174573.jpg)
4 |
1C005740 - COMPLETE WISHBONE ENGINE SIDE More informationQuantity required : 1 |
||||||
|
5 |
GASKET FOR SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER /MAXISCOOTER -597317 More informationQuantity required : 2 |
||||||
|
6 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/9/img/67329.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -597080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/7/img/72977.jpg)
8 |
SPACER- FOR SWINGING ARM (L228MM) "PIAGGIO GENUINE PART" 125-250-300 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, LIBERTY 2006>/GILERA 125-250-300 NEXUS 2007> -CM067803 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/1/img/67351.jpg)
9 |
SCREW - FOR ENGINE SILENTBLOC SUPPORT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -597774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/7/img/67067.jpg)
10 |
564611 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
11 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
12 |
SCREW - FOR SUSPENSION ARM (10X202) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -271807 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/5/img/72975.jpg)
13 |
SPACER- FOR SWINGING ARM (L183MM) "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -CM067801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/0/img/67330.jpg)
14 |
597081 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
15 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
16 |
1C000608 - VIS More informationQuantity required : 2 |
||||||
|
17 |
178790 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
19 |
SILENBLOC - ENGINE SUPPORT "PIAGGIO GENUINE PART" 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
20 |
BUSH FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 LEADER -273460 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/1/5/img/158215.jpg)
21 |
1C004658 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/2/8/2/img/149282.jpg)
22 |
1C002624 - SILENBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/3/0/img/90130.jpg)
23 |
667026 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/7/img/68917.jpg)
24 |
830434 - JOINT SPIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
25 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416 More informationQuantity required : 1 |
