Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

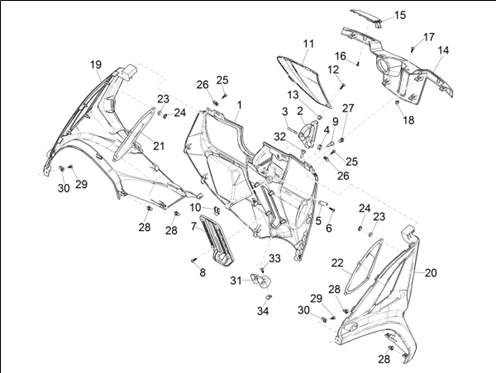

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.30.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/3/6/img/158136.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 300 MP3 HPE 2019> 1B0059950000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/0/4/img/162804.jpg)
2 |
HAND BAG HOOK "PIAGGIO GENUINE PART" 125-300 JOURBAN 2012>, 300-350-500 MP3 2014>, 125-300-350 BEVERLY 2010>, 125 MEDLEY 2016> -1B006813 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/0/img/67110.jpg)
3 |
AXLE FOR GLOVEBOX HOOK LOCK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -575021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/3/img/78073.jpg)
4 |
299693 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/8/img/66538.jpg)
5 |
464620 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/6/3/img/75863.jpg)
7 |
1B001388 - JOINT LEVIER More informationQuantity required : 1 |
||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/3/7/img/158137.jpg)
11 |
1B0060050000C - PORTE D'INSPECTION LIQUIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
12 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
13 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/0/1/4/img/199014.jpg)
14 |
1B005996000NA - CENTRAL COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/0/1/5/img/199015.jpg)
14 |
1B005996000HX - CENTRAL COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/3/8/img/158138.jpg)
14 |
1B005996 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/3/9/img/158139.jpg)
15 |
1B0061490000C - CACHE ARR DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
16 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
17 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 2 |
||||||
|
18 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/5/9/img/174559.jpg)
19 |
1B0072580000C - RIGHT SIDE COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/6/0/img/174560.jpg)
20 |
1B0072560000C - LEFT SIDE COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/4/2/img/158142.jpg)
21 |
FRONT RIGHT PROTECTIVE GRID "PIAGGIO GENUINE PART" 300 MP3 HPE 2019> -1B006483- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/0/1/6/img/199016.jpg)
21 |
1B005994 - GRILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/4/3/img/158143.jpg)
22 |
FRONT LEFT PROTECTIVE GRID "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019> -1B006482- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/0/1/7/img/199017.jpg)
22 |
1B005993 - GRILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/6/img/66586.jpg)
23 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER -479882 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/9/img/65959.jpg)
24 |
LOCKING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -230359 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
25 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
26 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
27 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 5 |
||||||
|
28 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 4 |
||||||
|
29 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
|
30 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/4/4/img/158144.jpg)
31 |
1B006234 - ETRIER More informationQuantity required : 1 |
||||||
|
32 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
|
33 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 1 |
||||||
|
34 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
