Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

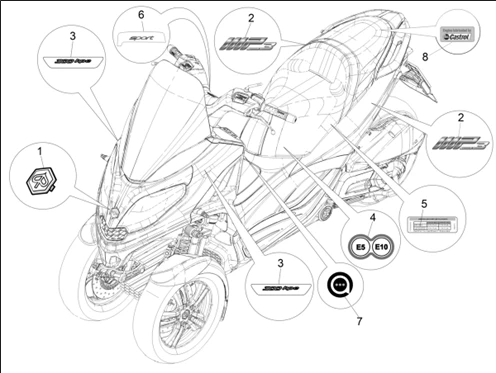

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.38.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/8/2/img/85282.jpg)
1 |
DECAL - TO CLIP ON FRONT FAIRING "PIAGGIO GENUINE PART" 300-350-500 MP3, 50-125 LIBERTY, 300-350 BEVERLY -1B003766 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/4/3/3/img/151433.jpg)
2 |
DECAL "MP3" "PIAGGIO GENUINE PART" 350-500 MP3 MAXI 2018> -2H002530 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/7/5/img/75875.jpg)
2 |
DECAL "MP3" "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> CHROME -1B001460 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/8/5/img/158185.jpg)
3 |
DECAL- "300IE" "PIAGGIO GENUINE PART" 300 MP3 2019> -2H003375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/8/6/img/158186.jpg)
3 |
2H003374 - MONOGRAMME 300 IE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/3/img/156103.jpg)
4 |
2B0059385 - DECALCO More informationQuantity required : 1 |
||||||
5 |
1G000211 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/8/7/img/158187.jpg)
6 |
2H003376 - MONOGRAMME SPORT More informationQuantity required : 1 |
||||||
|
7 |
2H003323 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/2/6/7/img/174267.jpg)
8 |
2H002046 - STICKER More informationQuantity required : 1 |
