Vehicle Exploded View - PIAGGIO MP3 300 HPE - 300 HPE Sport E5 ABS 2020-2022 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

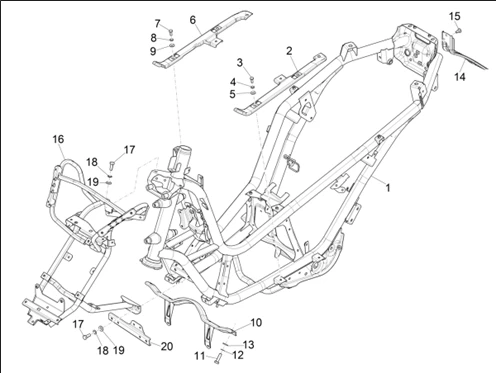

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1171/MP3_300_HPE_-_300_HPE_Sport_E5_ABS_2020-2022_EMEA_02.01.png)
1 |
1B0059525 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
1B0060235 - TRAVERSE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
3 |
031088 - VIS S03108800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
013880 - RONDELLE More informationQuantity required : 2 |
||||||
|
6 |
1B0060245 - TRAVERSE DROIT More informationQuantity required : 1 |
||||||
|
7 |
031088 - VIS S03108800 More informationQuantity required : 2 |
||||||
|
8 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
|
9 |
013880 - RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
1B0060655 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
11 |
031122 - BOULON FIX BRAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
12 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
13 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
|
14 |
6573195 - CHASSIS ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
15 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/5/1/img/174551.jpg)
16 |
1B00856745 - FRONT FRAME WITH IP WITH CATAPHOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
17 |
031119 - BOULON More informationQuantity required : 4 |
||||||
|
18 |
012540 - RONDELLE More informationQuantity required : 4 |
||||||
|
19 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 4 |
||||||
|
20 |
1B0059625 - TRAVERSE DROIT More informationQuantity required : 1 |
