Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

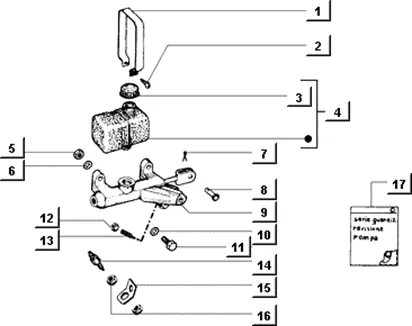

Roues : T61 RESERVOIR HUILE FREINS - INTERRUPTEUR STOP
Reservoir huile freins - interrupteur stop
Search
247446 - COLLIER

1
P2R reference P2R reference 111302
Maker reference Maker reference 247446

247446 CLAMP

More information

Quantity required : 1

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

2
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

More information

Quantity required : 1

119597 - BOUCHON RES.

3
P2R reference P2R reference 111873
Maker reference Maker reference 119597

119597 CAP RES.

More information

Quantity required : 1

2466335 - RESERVOIR HUILE

4
P2R reference P2R reference 116201
Maker reference Maker reference 2466335

2466335 TANK OIL

More information

Quantity required : 1

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

5
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

More information

Quantity required : 2

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

6
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 2

GOUPILLE (1. 2X12) OEM PIAGGIO COMMON A LA RANGE-012761

7
P2R reference P2R reference 65353
Maker reference Maker reference 0127615

GOUPILLE (1. 2X12) OEM PIAGGIO COMMON A LA RANGE-012761

More information

Quantity required : 1

074451 - PIVOT

8
P2R reference P2R reference 113431
Maker reference Maker reference 0744515

074451 PIVOT

More information

Quantity required : 1

BRAKE MASTER CYLINDER OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-249519

9
P2R reference P2R reference 120778
Maker reference Maker reference 249519

BRAKE MASTER CYLINDER OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-249519

More information

Quantity required : 1

WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604

10
P2R reference P2R reference 65422
Maker reference Maker reference 0166045

WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604

More information

Quantity required : 2

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

11
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 2

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

12
P2R reference P2R reference 65474
Maker reference Maker reference 0202065

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

More information

Quantity required : 1

076955 - VIS

13
P2R reference P2R reference 110523
Maker reference Maker reference 0769555

076955 SCREW

More information

Quantity required : 1

CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289

14
P2R reference P2R reference 115889
Maker reference Maker reference B023289

CONTACTEUR DE STOP/BENNE OEM PIAGGIO THREE-WHEELER APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION-B023289

More information

Quantity required : 1

219871 - EQUERRE

15
P2R reference P2R reference 111724
Maker reference Maker reference 219871

219871 BRACKET

More information

Quantity required : 1

568636 - ECROU

16
P2R reference P2R reference 67088
Maker reference Maker reference 568636

568636-NUT

More information

Quantity required : 2

154868 - KIT REVISION

17
P2R reference P2R reference 116408
Maker reference Maker reference 154868

154868 KIT REVISION

More information

Quantity required : 1
