Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

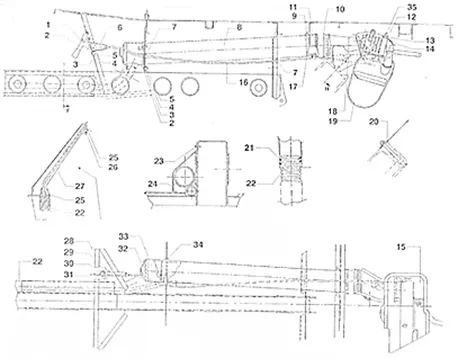

Châssis : T83 KIT CHAUFFAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T83.PNG)
0 |
KIT CHAUFFAGE |
||||||
|
1 |
125185 LEVETTA CON PO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
2 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 6 |
||||||
|
3 |
003055-WASHER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
4 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
5 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 6 |
||||||
|
6 |
1252836 CHARNIERE More informationQuantity required : 1 |
||||||
|
8 |
Conduite air |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
9 |
SCREW PARKER (4. 8X9. 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008265 More informationQuantity required : 2 |
||||||
|
10 |
126921 HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
12 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
13 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
14 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
|
15 |
2504235 CHAUFFAGE More informationQuantity required : 1 |
||||||
|
16 |
125503 TRANSMISSION More informationQuantity required : 1 |
||||||
|
17 |
125096 PONT More informationQuantity required : 1 |
||||||
|
18 |
119278 EMBOUT More informationQuantity required : 1 |
||||||
|
19 |
487445 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
20 |
013755-WASHER More informationQuantity required : 1 |
||||||
|
21 |
218354 BOURRAGE More informationQuantity required : 1 |
||||||
|
22 |
2660145 - PIPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
23 |
SCREW CRUCIFORME (3. 5X9. 5) TARAUD OEM PIAGGIO COMMON A LA RANGE-121668 More informationQuantity required : 4 |
||||||
|
24 |
COUVERCLE |
||||||
|
25 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
26 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 1 |
||||||
|
27 |
218215 DEFROSTER C80 More informationQuantity required : 1 |
||||||
|
28 |
002438 NUT S00243800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
29 |
WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608 More informationQuantity required : 1 |
||||||
|
30 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
31 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
|
32 |
214163 ETRANGLEUR AIR CHAUD More informationQuantity required : 1 |
||||||
|
33 |
2183605 - WARMLUFTREGLER More informationQuantity required : 1 |
||||||
|
34 |
125091 COLLARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/9/img/65619.jpg)
35 |
SCREW TH (8X90) OEM PIAGGIO COMMON A LA RANGE-030084 More informationQuantity required : 2 |
