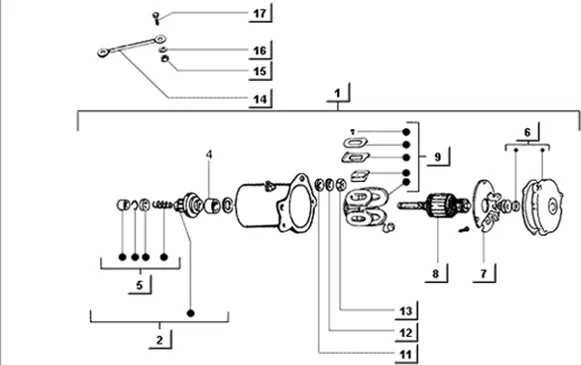

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Moteur : T18 DEMARREUR ELECTRIQUE
Demarreur electrique
Search
STARTER MOTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 > 2010-179116

1
P2R reference P2R reference 123676
Maker reference Maker reference 179116

STARTER MOTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 > 2010-179116

More information

Quantity required : 1

STARTER MOTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 2011 > 2018-1D001966

1
P2R reference P2R reference 151108
Maker reference Maker reference 1D001966

STARTER MOTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 2011 > 2018-1D001966

More information

Quantity required : 1

248293 - PIGNON & ROUE LIBRE

2
P2R reference P2R reference 120162
Maker reference Maker reference 248293

248293 SPROCKET & WHEEL LIBRE *

More information

Quantity required : 1

179754 - DOUILLE

4
P2R reference P2R reference 114602
Maker reference Maker reference 179754

179754 BUSH

More information

Quantity required : 1

KIT DE STARTER MOTOR OEM PIAGGIO 125 PX VESPA 2011 > 2017-249482

5
P2R reference P2R reference 115654
Maker reference Maker reference 249482

KIT DE STARTER MOTOR OEM PIAGGIO 125 PX VESPA 2011 > 2017-249482

More information

Quantity required : 1

COUVERCLE

6
P2R reference P2R reference
Maker reference Maker reference 179753

COUVERCLE

DISC/BALAIS DE STARTER MOTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 2008 <, VESPA PK 2008 <-291383

7
P2R reference P2R reference 116138
Maker reference Maker reference 291383

DISC/BALAIS DE STARTER MOTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 2008 <, VESPA PK 2008 <-291383

More information

Quantity required : 1

179757 - INDUIT

8
P2R reference P2R reference 65795
Maker reference Maker reference 179757

179757-INDUIT

More information

Quantity required : 1

CHAMP INDUCTEUR

9
P2R reference P2R reference
Maker reference Maker reference 179756

CHAMP INDUCTEUR

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

11
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 2

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

12
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 2

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

13
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 2

218631 - MASSE

14
P2R reference P2R reference 113914
Maker reference Maker reference 218631

218631 MASSE

More information

Quantity required : 1

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

15
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 1

WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532

16
P2R reference P2R reference 65344
Maker reference Maker reference 0125325

WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532

More information

Quantity required : 2

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056

17
P2R reference P2R reference 65632
Maker reference Maker reference 0310565

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056

More information

Quantity required : 1
