Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

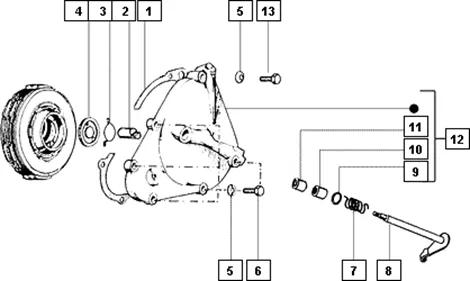

Moteur : T12 COUVERCLE D'EMBRAGUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T12.PNG)
1 |
B018214 GASKET COVER EMBR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/5/2/img/117152.jpg)
2 |
BUTEE CLUTCH OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-871561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/3/img/66173.jpg)
3 |
CLIPS/CIRCLIPS CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2017 > 2019/CLASSIC 2017 > 2023-286406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/8/img/66158.jpg)
4 |
PLATEAU DE POUSSEE CLUTCH OEM PIAGGIO THREE-WHEELER APE 50 1998 >/50 FL2 VINTAGE 2860246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
5 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
6 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 6 |
||||||
|
6 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/9/img/65979.jpg)
7 |
239275-SPRING More informationQuantity required : 1 |
||||||
|
8 |
2885075 LEVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/1/img/63831.jpg)
9 |
GASKET SELECTEUR CLUTCH OEM PIAGGIO 50 FL2 1997 < VINTAGE-006710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/9/img/66159.jpg)
10 |
BUSH LEVER CLUTCH OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-286101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/7/img/65767.jpg)
11 |
BUSH DE ROD D'EMBRAYAGE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-165945 More informationQuantity required : 1 |
||||||
|
12 |
8715765 COVER CLUTCH COMPLETE More informationQuantity required : 1 |
||||||
|
13 |
|
