Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Moteur : T7 ENSEMBLE CYLINDRE - PISTON - AXE DE PISTON

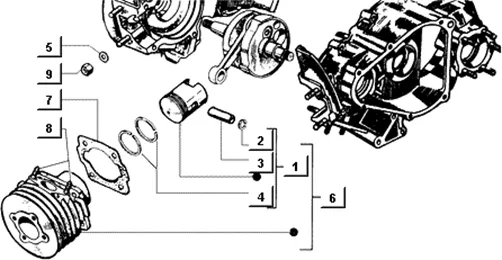

Ensemble cylindre - piston - axe de piston
Search
PISTON COMPLETE (CAT2) OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL2-2432740002

1
P2R reference P2R reference 65986
Maker reference Maker reference 2432740002

PISTON COMPLETE (CAT2) OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL2-2432740002

More information

Quantity required : 1

2432740003 - GR.PISTONE-SPI

1
P2R reference P2R reference 65987
Maker reference Maker reference 2432740003

PISTON COMPLETE (CAT3) OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL2-2432740003

More information

Quantity required : 1

GROUPE PISTON 1ER

1
P2R reference P2R reference
Maker reference Maker reference 243275

GROUPE PISTON 1ER

243276 - PISTON CPLT 2EME

1
P2R reference P2R reference 65988
Maker reference Maker reference 243276

243276 - PISTON CPLT 2EME

More information

Quantity required : 1

PISTON CPLT 3EME

1
P2R reference P2R reference
Maker reference Maker reference 243277

PISTON CPLT 3EME

CLIPS/CIRCLIPS SHAFT OF PISTON (10. 8) OEM PIAGGIO 50 VESPA FL2/THREE-WHEELER APE DIESEL TM 603, CAR, POKER-0066126

2
P2R reference P2R reference 63818
Maker reference Maker reference 0066125

CLIPS/CIRCLIPS SHAFT OF PISTON (10. 8) OEM PIAGGIO 50 VESPA FL2/THREE-WHEELER APE DIESEL TM 603, CAR, POKER-0066126

More information

Quantity required : 2

879434 - AXE PISTON

3
P2R reference P2R reference 112220
Maker reference Maker reference 879434

879434 SPINDLE PISTON

More information

Quantity required : 1

PISTON RING OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL-2235598

4
P2R reference P2R reference 65972
Maker reference Maker reference 235598

PISTON RING OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL-2235598

More information

Quantity required : 1

235606 - SEGMENT 1ER MAJ

4
P2R reference P2R reference 65973
Maker reference Maker reference 235606

235606-PISTON RING 1ER MAJ

More information

Quantity required : 1

235607 - SEGMENT 2EME MAJ

4
P2R reference P2R reference 65974
Maker reference Maker reference 235607

235607 - SEGMENT 2EME MAJ

More information

Quantity required : 1

235608 - SEGMENT 3EME MAJ

4
P2R reference P2R reference 65975
Maker reference Maker reference 235608

235608 - SEGMENT 3EME MAJ

More information

Quantity required : 1

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

5
P2R reference P2R reference 65417
Maker reference Maker reference 0164075

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

More information

Quantity required : 4

CYLINDER PISTON OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-828679

6
P2R reference P2R reference 122829
Maker reference Maker reference 828679

CYLINDER PISTON OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-828679

More information

Quantity required : 1

CYLINDER BASE GASKET DE CYLINDER OEM PIAGGIO 50 THREE-WHEELER APE 2T 1980 >-826911

7
P2R reference P2R reference 68629
Maker reference Maker reference 826911

CYLINDER BASE GASKET DE CYLINDER OEM PIAGGIO 50 THREE-WHEELER APE 2T 1980 >-826911

More information

Quantity required : 1

1B000428 - GOUJON

8
P2R reference P2R reference 65848
Maker reference Maker reference 1B000428

1B000428-STUD

More information

Quantity required : 2

NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107

9
P2R reference P2R reference 65462
Maker reference Maker reference 0201075

NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107

More information

Quantity required : 4
