Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

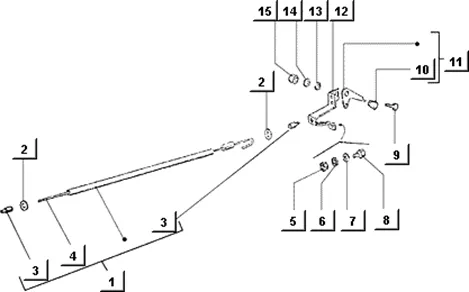

Châssis : T66 COMMANDE CHAUFFAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T66.PNG)
1 |
125503 TRANSMISSION More informationQuantity required : 1 |
||||||
|
2 |
016516 GUIDE CABLE More informationQuantity required : 2 |
||||||
|
3 |
119278 EMBOUT More informationQuantity required : 2 |
||||||
|
4 |
119273 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
5 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 3 |
||||||
|
7 |
003055-WASHER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
8 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
9 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
|
10 |
616842 LEVER CONTROL STEP REAR More informationQuantity required : 1 |
||||||
|
11 |
125185 LEVETTA CON PO More informationQuantity required : 1 |
||||||
|
12 |
1252836 CHARNIERE More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
14 |
WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608 More informationQuantity required : 1 |
||||||
|
15 |
002438 NUT S00243800 More informationQuantity required : 1 |
