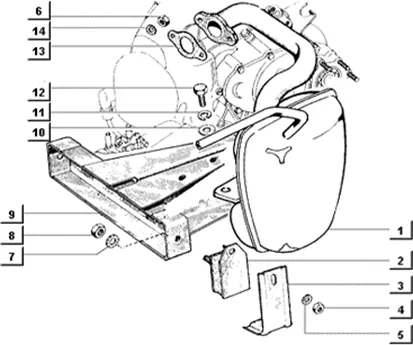

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Moteur : T17 SUPPORT MOTEUR - POT D'ECHAPPEMENT
Support moteur - pot d'echappement
Search
830451 - ECHAPPEMENT C80 CATALYZED

1
P2R reference P2R reference 123038
Maker reference Maker reference 830451

830451 - ECHAPPEMENT C80 CATALYZED

More information

Quantity required : 1

830452 - SILENCIEUX

1
P2R reference P2R reference 121444
Maker reference Maker reference 830452

830452 - SILENCIEUX

More information

Quantity required : 1

840078 - POT D'ECHAPPEMENT

1
P2R reference P2R reference 123209
Maker reference Maker reference 840078

840078 - POT D'ECHAPPEMENT

More information

Quantity required : 1

1
P2R reference P2R reference
Maker reference Maker reference 4874555

BRACKET MOUNTING ENGINE OEM PIAGGIO THREE-WHEELER APE 50 1980 >-127350

2
P2R reference P2R reference 117303
Maker reference Maker reference 127350

BRACKET MOUNTING ENGINE OEM PIAGGIO THREE-WHEELER APE 50 1980 >-127350

More information

Quantity required : 2

FLANGE DE BRACKET ENGINE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-116869T

3
P2R reference P2R reference 115041
Maker reference Maker reference 116869T

FLANGE DE BRACKET ENGINE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-116869T

More information

Quantity required : 2

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

4
P2R reference P2R reference 65465
Maker reference Maker reference 0201105

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

More information

Quantity required : 2

WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535

5
P2R reference P2R reference 65346
Maker reference Maker reference 0125355

WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535

More information

Quantity required : 2

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

6
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 2

WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535

7
P2R reference P2R reference 65346
Maker reference Maker reference 0125355

WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535

More information

Quantity required : 2

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

8
P2R reference P2R reference 65465
Maker reference Maker reference 0201105

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

More information

Quantity required : 2

2411493 - SUPPORT

9
P2R reference P2R reference 120505
Maker reference Maker reference 2411493

BRACKET ENGINE OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-2411493

More information

Quantity required : 1

WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861

10
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861

More information

Quantity required : 2

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

11
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 2

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

12
P2R reference P2R reference 65644
Maker reference Maker reference 0311165

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

More information

Quantity required : 2

GASKET SILENCER EXHAUST OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-288837

13
P2R reference P2R reference 66199
Maker reference Maker reference 288837

GASKET SILENCER EXHAUST OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-288837

More information

Quantity required : 1

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

14
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2
