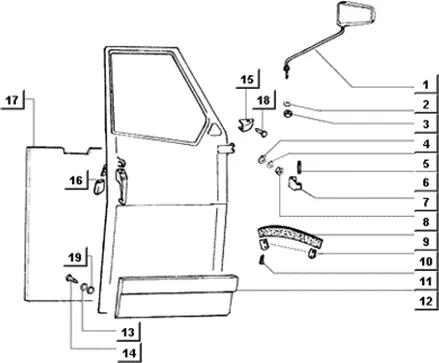

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Châssis : T42 RETROVISEUR
Retroviseur
Search
LEFT MIRROR OEM PIAGGIO THREE-WHEELER APE 50 MIX 1998 > 2008-565061

1
P2R reference P2R reference 116433
Maker reference Maker reference 565061

LEFT MIRROR OEM PIAGGIO THREE-WHEELER APE 50 MIX 1998 > 2008-565061

More information

Quantity required : 1

RIGHT MIRROR OEM PIAGGIO THREE-WHEELER APE 50 MIX 1998 > 2008-565062

1
P2R reference P2R reference 116432
Maker reference Maker reference 565062

RIGHT MIRROR OEM PIAGGIO THREE-WHEELER APE 50 MIX 1998 > 2008-565062

More information

Quantity required : 1

569614 - RETRO G NM TM50

1
P2R reference P2R reference 117635
Maker reference Maker reference 569614

LEFT MIRROR OEM PIAGGIO THREE-WHEELER APE 50 2T 2009 > 2018-569614

More information

Quantity required : 1

569615 - RETRO DR NM TM50

1
P2R reference P2R reference 117633
Maker reference Maker reference 569615

RIGHT MIRROR OEM PIAGGIO THREE-WHEELER APE 50 2T 2009 > 2018-569615

More information

Quantity required : 1

RONDELLE

2
P2R reference P2R reference
Maker reference Maker reference 258763

RONDELLE

3
P2R reference P2R reference
Maker reference Maker reference 143415

WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861

4
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861

More information

Quantity required : 4

WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540

5
P2R reference P2R reference 65349
Maker reference Maker reference 0125405

WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540

More information

Quantity required : 4

008851 - GOUPILLE S00885100

6
P2R reference P2R reference 111237
Maker reference Maker reference 0088515

008851 - GOUPILLE S00885100

More information

Quantity required : 4

193851 - CHARNIERE

7
P2R reference P2R reference 116939
Maker reference Maker reference 193851

193851 - CHARNIERE

More information

Quantity required : 2

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

8
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

More information

Quantity required : 4

BELT/SANGLE DE DOOR (L134) OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-175074

9
P2R reference P2R reference 112137
Maker reference Maker reference 175074

BELT/SANGLE DE DOOR (L134) OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-175074

More information

Quantity required : 2

567605 - PLAQUETTE

10
P2R reference P2R reference 110511
Maker reference Maker reference 567605

567605 PLATE

More information

Quantity required : 4

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

11
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

More information

Quantity required : 8

567148 - PANNEAU DRT

12
P2R reference P2R reference 115652
Maker reference Maker reference 567148

PANEL DE DOOR FRONT RIGHT OEM PIAGGIO THREE-WHEELER APE 50 1998 >-567148

More information

Quantity required : 1

567149 - PANNEAU GAUCHE

12
P2R reference P2R reference 115646
Maker reference Maker reference 567149

PANEL DE DOOR FRONT LEFT OEM PIAGGIO THREE-WHEELER APE 50 1998 >-567149

More information

Quantity required : 1

GASKET RUBBER (3. 8X9X3. 5) OEM PIAGGIO COMMON A LA RANGE-190479

13
P2R reference P2R reference 109778
Maker reference Maker reference 190479

GASKET RUBBER (3. 8X9X3. 5) OEM PIAGGIO COMMON A LA RANGE-190479

More information

Quantity required : 6

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

14
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

More information

Quantity required : 6

COVER/COVER LEFT OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-567179

15
P2R reference P2R reference 111636
Maker reference Maker reference 567179

COVER/COVER LEFT OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-567179

More information

Quantity required : 2

COVER/COVER RIGHT OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-567185

15
P2R reference P2R reference 111864
Maker reference Maker reference 567185

COVER/COVER RIGHT OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-567185

More information

Quantity required : 1

PROTECTOR ON DOOR OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-261405

16
P2R reference P2R reference 113427
Maker reference Maker reference 261405

PROTECTOR ON DOOR OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-261405

More information

Quantity required : 1

CM040202 - PANNEAUX PORTE

17
P2R reference P2R reference 118776
Maker reference Maker reference CM040202

CM040202 - PANNEAUX PORTE

More information

Quantity required : 1

CM040203 - PANNEAUX PORTE

17
P2R reference P2R reference 118222
Maker reference Maker reference CM040203

CM040203 PANNEAUX DOOR

More information

Quantity required : 1

CM040204 - PANNEAU D

17
P2R reference P2R reference 118223
Maker reference Maker reference CM040204

CM040204 PANEL D

More information

Quantity required : 1

CM030701 - PANNEAUX PORTE C80 CROSS GAUCHE

17
P2R reference P2R reference 119204
Maker reference Maker reference CM030701

CM030701 - PANNEAUX PORTE C80 CROSS GAUCHE

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

18
P2R reference P2R reference 65403
Maker reference Maker reference 0159115

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

More information

Quantity required : 2

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

19
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

More information

Quantity required : 6
