Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

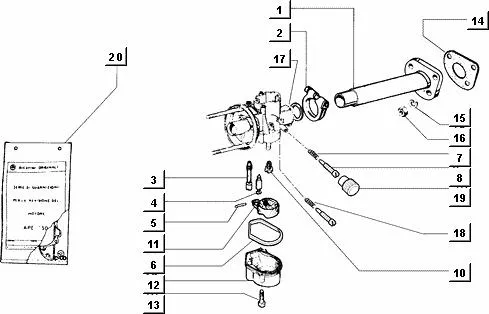

Moteur : T20 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/2/3/5/img/118235.jpg)
1 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO THREE-WHEELER APE 50 1980 > 2018-286889 More informationQuantity required : 1 |
||||||
2 |
140275 CLAMP More informationQuantity required : 1 |
||||||
|
3 |
098433-GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/7/img/65997.jpg)
4 |
POINTEAU CARBURETTOR OEM PIAGGIO 50 CIAO/GILERA 50 GSM, EAGLET 1998 > 2005/APRILIA 50 CLASSIC, MX 1998 > 2005-247653 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/1/img/65671.jpg)
5 |
SHAFT OF FLOTEUR OF CARBURETTOR OEM PIAGGIO 125 PX VESPA-085291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/7/9/img/110979.jpg)
6 |
FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO 50 THREE-WHEELER APE1980 >-098148 More informationQuantity required : 1 |
||||||
|
7 |
098135-SPRING More informationQuantity required : 1 |
||||||
|
8 |
VIS |
||||||
|
10 |
083898 GIGLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/0/6/img/68506.JPG)
11 |
CARBURETTOR FLOAT SHB 18/16 OEM PIAGGIO THREE-WHEELER APE 50-813173 More informationQuantity required : 1 |
||||||
|
12 |
311277-CUVE * More informationQuantity required : 1 |
||||||
|
13 |
813176 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/0/8/img/111608.jpg)
14 |
873214 GASKET More informationQuantity required : 1 |
||||||
|
15 |
007631 - RONDELLE S00763100 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 3 |
||||||
|
17 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/4/img/65684.jpg)
18 |
SPRING OF CARBURETTOR OEM PIAGGIO 50 PK, 125 ET3 VESPA VINTAGE-098130 More informationQuantity required : 1 |
||||||
|
19 |
Boule |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/2/3/img/114023.jpg)
20 |
POCHETTE JOINTS CARBURETTOR OEM PIAGGIO THREE-WHEELER APE 50 1998-2018-498347 More informationQuantity required : 1 |
