Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

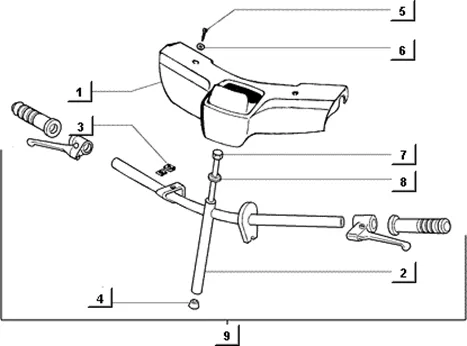

Guidon : T58 GUIDON COMPLET - CACHE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T58.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/5/8/9/img/118589.jpg)
1 |
HANDLEBAR COVER OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-261406 More informationQuantity required : 1 |
||||||
2 |
2679035 HANDLEBAR TM 50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
3 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/9/7/img/112497.jpg)
4 |
CONE SERRAGE HANDLEBAR OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-116298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
5 |
SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
6 |
WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670 More informationQuantity required : 2 |
||||||
|
7 |
226352 BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/8/4/img/111284.jpg)
8 |
WASHER EXPANDEUR OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-126612 More informationQuantity required : 1 |
||||||
|
9 |
5669975 HANDLEBAR CPLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/4/4/img/111544.jpg)
10 |
SPRING BRAKE SHOE SET REAR OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 > 2018-116112 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/1/8/5/img/119185.jpg)
11 |
KIT MACHOIRES OF BRAKE REAR (2 PAIRES) OEM PIAGGIO THREE-WHEELER APE 50 2T 2018 <-154998 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/0/2/img/111402.jpg)
12 |
SPRING MACHOIRE REAR OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 > 2018-117456 More informationQuantity required : 4 |
||||||
|
13 |
LEVIER G |
||||||
|
13 |
LEVIER D |
||||||
|
14 |
RONDELLE |
