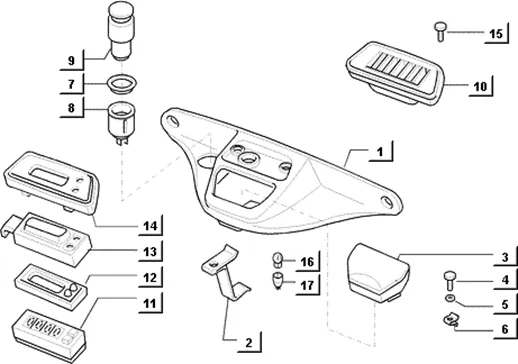

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Châssis : T36 TABLEAU DE BORD SUPÉRIEUR CENTRAL
Tableau de bord supérieur central
Search
567191 - TABLEAU BORD

1
P2R reference P2R reference 116970
Maker reference Maker reference 567191

567191 PANEL EDGE

More information

Quantity required : 1

567108 - RINF.INF.VANO

2
P2R reference P2R reference 118990
Maker reference Maker reference 567108

567108 RINF. INF. VANO

More information

Quantity required : 1

178745 - CENDRIER

3
P2R reference P2R reference 115640
Maker reference Maker reference 178745

178745 CENDRIER

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536

4
P2R reference P2R reference 65437
Maker reference Maker reference 0185365

SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536

More information

Quantity required : 1

RONDELLE

5
P2R reference P2R reference
Maker reference Maker reference 256382

RONDELLE

CM017402 - PLAQUETTE

6
P2R reference P2R reference 110192
Maker reference Maker reference CM017402

CM017402 PLATE

More information

Quantity required : 1

BAGUE LUMINEUSE

7
P2R reference P2R reference
Maker reference Maker reference 565559

BAGUE LUMINEUSE

CULOT ALLUME CIGARE

8
P2R reference P2R reference
Maker reference Maker reference 565560

CULOT ALLUME CIGARE

565429 - ALLUME CIGARE

9
P2R reference P2R reference 117848
Maker reference Maker reference 565429

565429 ALLUME CIGARE

More information

Quantity required : 1

567196 - COUVERCLE PORTE MONN

10
P2R reference P2R reference 113837
Maker reference Maker reference 567196

567196 COVER DOOR MONN

More information

Quantity required : 1

HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406

11
P2R reference P2R reference 72187
Maker reference Maker reference AP8212406

HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406

More information

Quantity required : 1

580887 - PULSANTIERA OR

12
P2R reference P2R reference 111215
Maker reference Maker reference 580887

580887 PULSANTIERA OR

More information

Quantity required : 1

580888 - TRASPARENTE OR

13
P2R reference P2R reference 111892
Maker reference Maker reference 580888

580888 TRASPARENTE OR

More information

Quantity required : 1

567194 - COUVERCLE

14
P2R reference P2R reference 113480
Maker reference Maker reference 567194

567194 COVER

More information

Quantity required : 1

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

15
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

More information

Quantity required : 2

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

16
P2R reference P2R reference 65760
Maker reference Maker reference 164634

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

More information

Quantity required : 1

217100 - PORTE AMPOULE CPTEUR

17
P2R reference P2R reference 65929
Maker reference Maker reference 217100

217100-DOOR AMPOULE CPTEUR

More information

Quantity required : 1
