Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

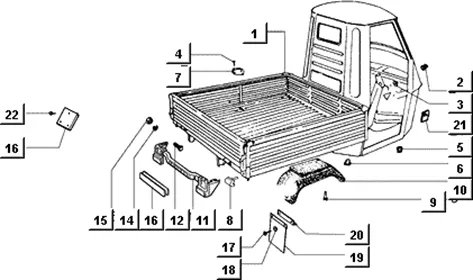

Châssis : T30 CHASSIS - GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T30.PNG)
1 |
5684935 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
5684945 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
5684955 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
5684965 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
FRAME (3/AR) |
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
230329 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/8/img/65678.jpg)
3 |
CAP OBTURATEUR (D6) OEM PIAGGIO COMMON A LA RANGE-090958 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
4 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 4 |
||||||
|
5 |
190567-BUFFER More informationQuantity required : 1 |
||||||
|
6 |
119241 CAP More informationQuantity required : 3 |
||||||
|
7 |
225814 COVER More informationQuantity required : 2 |
||||||
|
8 |
127046 BUFFER More informationQuantity required : 2 |
||||||
|
9 |
244474 RIVET More informationQuantity required : 8 |
||||||
|
10 |
567177 MUDGUARD LEFT More informationQuantity required : 1 |
||||||
|
10 |
567178 MUDGUARD RIGHT More informationQuantity required : 1 |
||||||
|
11 |
Pare-chocs |
||||||
|
11 |
B0250365 - PARE CHOC ARR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
12 |
SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116 More informationQuantity required : 4 |
||||||
|
13 |
255988 BUFFER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
14 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
15 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 4 |
||||||
|
16 |
567839 GASKET More informationQuantity required : 1 |
||||||
|
17 |
RIVET |
||||||
|
18 |
109329 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/6/4/img/113864.jpg)
19 |
264097 - PARE BOUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/2/0/img/111220.jpg)
20 |
264165 - EQUERRE More informationQuantity required : 2 |
||||||
|
21 |
SUPPORT GAUCHE |
||||||
|
21 |
SUPPORT DROIT |
