Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

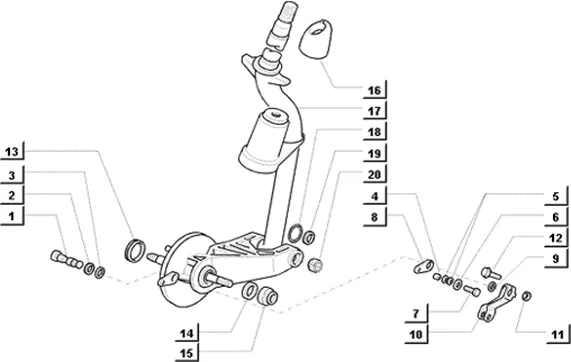

Guidon : T50 COLONNE DE DIRECTION
Colonne de direction
Search
567198 - AXE LEVIER FREIN

1
P2R reference P2R reference 116117
Maker reference Maker reference 567198

567198 SPINDLE LEVER BRAKE

More information

Quantity required : 1

GASKET CAME OF BRAKE REAR OEM PIAGGIO 50 COMMON A LA RANGE-273419

2
P2R reference P2R reference 66124
Maker reference Maker reference 273419

GASKET CAME OF BRAKE REAR OEM PIAGGIO 50 COMMON A LA RANGE-273419

More information

Quantity required : 1

WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246

3
P2R reference P2R reference 66132
Maker reference Maker reference 274246

WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246

More information

Quantity required : 1

179574 - ENTRETOISE

4
P2R reference P2R reference 65792
Maker reference Maker reference 179574

179574-SPACER

More information

Quantity required : 1

WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608

5
P2R reference P2R reference 63844
Maker reference Maker reference 0076085

WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608

More information

Quantity required : 2

WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575

6
P2R reference P2R reference 65793
Maker reference Maker reference 179575

WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575

More information

Quantity required : 1

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

7
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 1

274249 - LEVIER

8
P2R reference P2R reference 66133
Maker reference Maker reference 274249

274249 - LEVIER

More information

Quantity required : 1

O RING OF BRAKE ARRIEREORIGINE PIAGGIO 125 PX VESPA-006714

9
P2R reference P2R reference 63832
Maker reference Maker reference 0067145

O RING OF BRAKE ARRIEREORIGINE PIAGGIO 125 PX VESPA-006714

More information

Quantity required : 1

567199 - LEVIER

10
P2R reference P2R reference 115575
Maker reference Maker reference 567199

567199 - LEVIER

More information

Quantity required : 1

709041 - ECROU

11
P2R reference P2R reference 68490
Maker reference Maker reference 709041

709041 - ECROU

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

12
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

12
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

BUSH OF FORK OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-021460

13
P2R reference P2R reference 114454
Maker reference Maker reference 0214605

BUSH OF FORK OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-021460

More information

Quantity required : 1

177468 - RONDELLE

14
P2R reference P2R reference 112100
Maker reference Maker reference 177468

177468 WASHER

More information

Quantity required : 1

006844 - ECROU S00684400

15
P2R reference P2R reference 111330
Maker reference Maker reference 0068445

006844 NUT S00684400

More information

Quantity required : 1

261400 - PROTECTION

16
P2R reference P2R reference 113917
Maker reference Maker reference 261400

261400 PROTECTOR

More information

Quantity required : 1

5680565002 - TUBE DIRECTION

17
P2R reference P2R reference 123429
Maker reference Maker reference 5680565002

5680565002 TUBE STEERING

More information

Quantity required : 1

GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731

18
P2R reference P2R reference 63834
Maker reference Maker reference 0067315

GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731

More information

Quantity required : 2

GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219

19
P2R reference P2R reference 65707
Maker reference Maker reference 119219

GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219

More information

Quantity required : 2

ROLLER CAGE (16X14. 3) SPINDLE SUSPENSION DE OEM PIAGGIO THREE-WHEELER APE 50 1998 >/PIAGGIO VINTAGE-137146

20
P2R reference P2R reference 65735
Maker reference Maker reference 137146

ROLLER CAGE (16X14. 3) SPINDLE SUSPENSION DE OEM PIAGGIO THREE-WHEELER APE 50 1998 >/PIAGGIO VINTAGE-137146

More information

Quantity required : 2
