Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

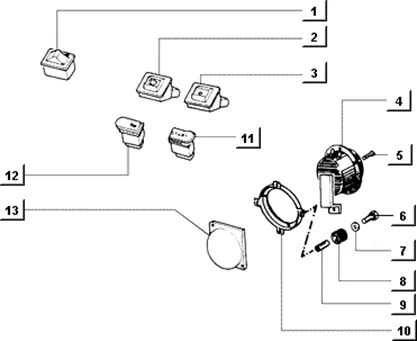

Connexions électriques : T76 COMMUTATEURS - KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T76.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/8/img/66278.jpg)
1 |
SWITCH INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005-294917 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/8/6/img/117386.jpg)
2 |
COMMODO/SWITCH/INTERRUPTEUR ESSUIE GLACE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-584097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/3/0/img/116130.jpg)
3 |
SWITCH ECLAIRAGE OEM PIAGGIO THREE-WHEELER APE 1998 > 2018-294370 More informationQuantity required : 1 |
||||||
4 |
58144R-AVERTISSEUR 12V-CC * More informationQuantity required : 1 |
||||||
|
5 |
009000-SCREW S00900000 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/8/img/65388.jpg)
6 |
SCREW PARKER (3, 5X19, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015728 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
7 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 2 |
||||||
|
8 |
401605-SILENBLOC More informationQuantity required : 2 |
||||||
|
9 |
219605-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/5/9/img/112759.jpg)
10 |
FLANGE MOUNTING AVERTISSEUR OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-240106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/3/img/66273.jpg)
11 |
BUTTON POUSSOIR DE STARTER MOTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 1998 > 2005-294398 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/2/img/66252.jpg)
12 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005-292364 More informationQuantity required : 1 |
||||||
|
13 |
B025161 CAP More informationQuantity required : 1 |
